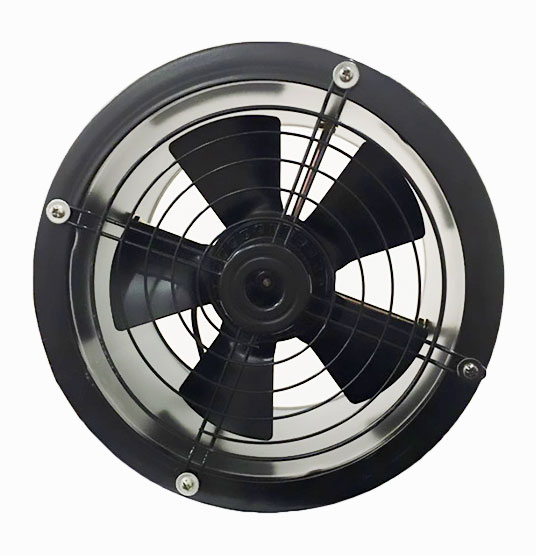

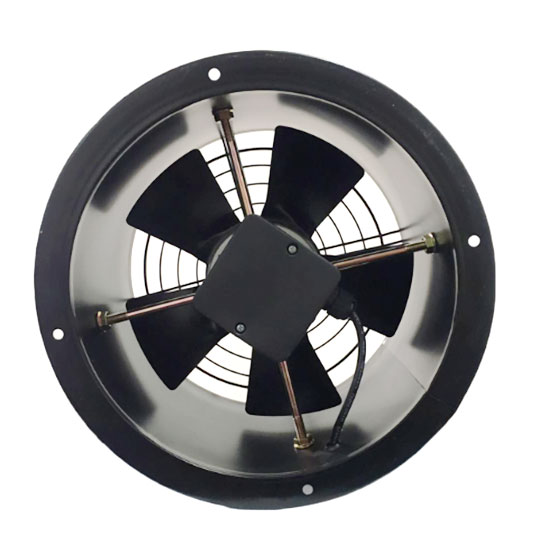

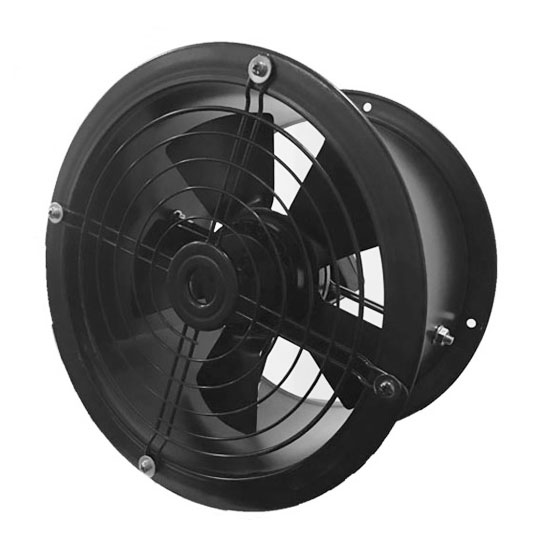

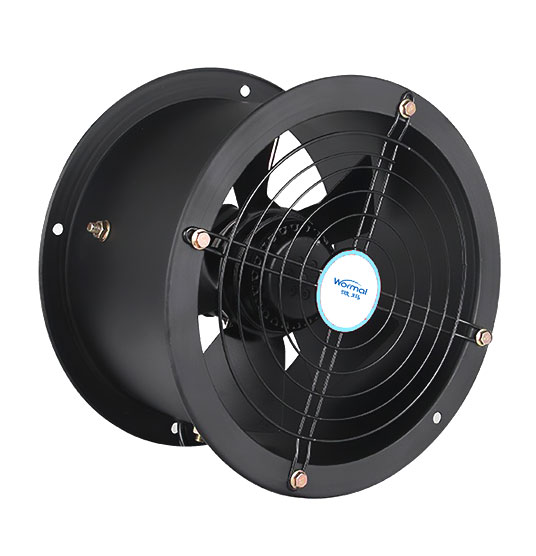

Φ200/Φ250/Φ300mm (8/10/12Inch) AC Cylinder (Tube) Axial Fan Ventilation Fans
Inquiry
EMAIL

Product  Application

The tube（cylinder） axial fan is characterized by its cylindrical design, delivering high air volume with medium pressure. It is widely used for general ventilation, heat removal, and fume extraction in factories, warehouses, and greenhouses, serving as a cost-effective solution for industrial and agricultural applications.

Basic Information

Fan TypeAC Cylinder Axial Flow Fan Φ200/Φ250/Φ300 Model (8/10/12 inch)
Blade/Net mesh  MaterialCarbon Steel
Rotor Material
Cast Aluminium
Motor
AC 100% Copper Coil External Rotor Motor
BearingBall Bearing
Protection Class
IP54
Insulation Class
F
Operating Temperature-30℃  To  +60℃

Technical Parameters

TypeDiameter of blade(mm)Voltage (V)Input power (W)Speed (Rpm)Max Airflow (CMH)Airflow Curves
YWF2E200φ20022063
2550750①
YWF2D200φ20038069
2600790②
YWF4E200φ200220401400556③
YWF2E250φ2502201042550960①
YWF2D250φ2503801042550965②
YWF4E250φ250220501400715③
YWF4D250φ250380551400740④
YWF2E300φ30022013625502020①
YWF2D300φ30038013625502060②
YWF4E300φ3002208513801170③
YWF4D300φ3003809013801230
④


Airflow Curves

200-airflowcurves

250-airflowcurves

300-airflowcurves



Packaging&Shipping：

Our products are usually packed in cardboard boxes with PE bags inside. We will pay attention to prevent collision, and the shipping mark can be made according to customer's requirements.

AC Axial Fans Shipping Process
Payment terms ,Delivery and Service：

Payment: All payments can be negotiated, usually by T/T or L/C at sight.

Delivery time: After receiving your payment, we will arrange production. We will ship the goods to your port of delivery as soon as possible.

Service: One year warranty, online technical service.

FAQ:

Q1:If there is no product size that meets the requirements, can it be customized?

A:If we can produce the required products, we can produce the required products according to the drawings and requirements provided by customers.

Q2:How long does it take to produce?

A:There is a stock can be sent Immediately. If there is no stock, one month at the latest.

Q3:How long does it take to ship?

A:It will take about 5-7 days to arrive by express and air. It may take up to a month to ship. It takes different time for different geographical locations.

Q4:Can you provide samples?

A:Yes. We can provide samples, but because most of the samples are sent by express, the cost may be very high.

After-sale Service:

Guide installation

Guidance on online service delivery

Advance service, whole process service

Communicate operation with customer's technicians
