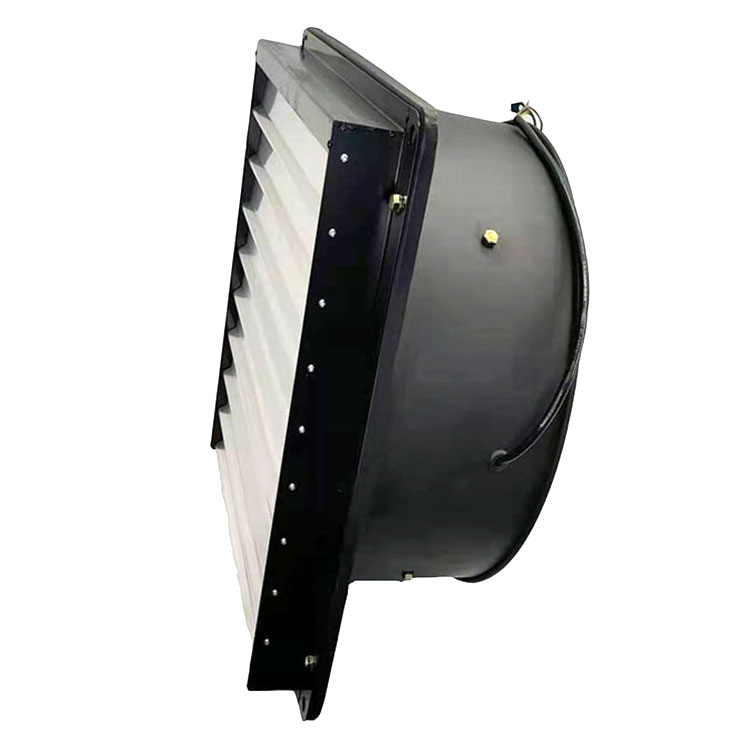

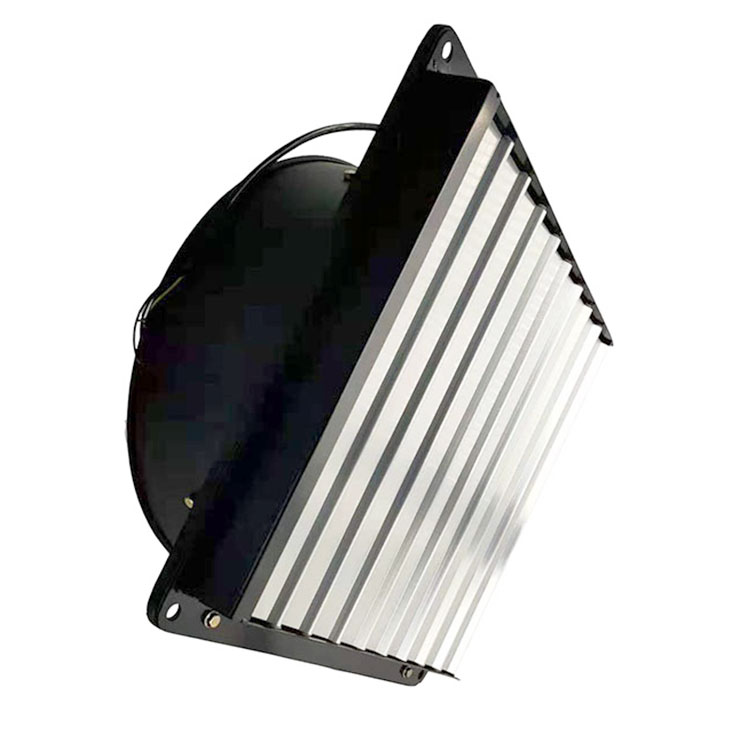

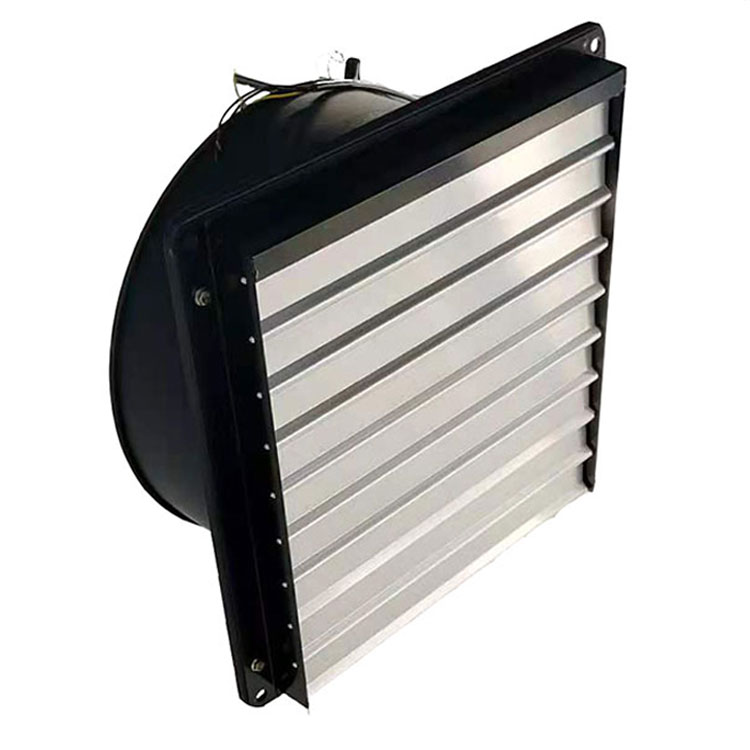

8"10"12"14"16"18"20"24" inch Shutter exhaust axial fan 8inch-24inch

Inquiry

Introduction

Blade material: cold-rolled plate

Warranty: 12 months

Fan style: louver style axial fan

Motor: AC 100% copper wire external rotor motor

Bearing: Double ball bearings

Frequency: 50HZ

Specification: Blade diameter from 200mm- 600mm,

Model No. : YWF -200-FB、YWF -250-FB、YWF -300-FB、YWF -350-FB、YWF -400-FB、YWF -500-FB、YWF -600-FB.

Uses: Wall fan, window fan, home fan, smok extractor louver fan, kitchen exhaust fan, bathroom fan.

Technical parameters

Diameterof theblade (mm)	Model No.	Description ofthe Goods
200	YWF2E-200FB	220V50HZ 63W,2550r/min, 52dBA,750m3/h
250	YWF2E-250FB	220V50HZ 104W,2550r/min, 60dBA,960m3/h
300	YWF2E-300FB	220V50HZ 136W,2550r/min, 61dBA,2020m3/h
350	YWF4E-350FB	220V50HZ 150W,1400r/min, 62dBA,2260m3/h
400	YWF4E-400FB	220V50HZ 190W,1360r/min, 66dBA,3830m3/h
500	YWF4E-500FB	220V50HZ 420W,1350r/min, 72dBA,6420m3/h
600	YWF4E-600FB	220V50HZ 780W,1350r/min, 77dBA,10020m3/h

Packaging&Shipping：

Our products are usually packed in cardboard boxes with PE bags inside. We will pay attention to prevent collision, and the shipping mark can be made according to customer's requirements.

 Payment terms ,Delivery and Service：

Payment: All payments can be negotiated, usually by T/T or L/C at sight.

Delivery time: After receiving your payment, we will arrange production. We will ship the goods to your port of delivery as soon as possible.

Service: One year warranty, online technical service.

FAQ:

Q1:If there is no product size that meets the requirements, can it be customized?

A:If we can produce the required products, we can produce the required products according to the drawings and requirements provided by customers.

Q2:How long does it take to produce?

A:There is a stock can be sent Immediately. If there is no stock, one month at the latest.

Q3:How long does it take to ship?

A:It will take about 5-7 days to arrive by express and air. It may take up to a month to ship. It takes different time for different geographical locations.

Q4:Can you provide samples?

A:Yes. We can provide samples, but because most of the samples are sent by express, the cost may be very high.

 After-sale Service:

Guide installation

Guidance on online service delivery

Advance service, whole process service

Communicate operation with customer's technicians
