Φ710/Φ800/Φ900mm (28/32/36 Inch) AC Wall Mounted Axial Fan Ventilation Fans

Inquiry

Product Application

Wall-mounted axial fans can quickly expel accumulated heat indoors, lowering the temperature, and rapidly remove damp moisture, keeping the air dry. They effectively eliminate cooking fumes in commercial kitchens and neutralize unpleasant odors in restrooms. In addition, wall-mounted axial fans are also commonly used in factory workshops, warehouses and storage centers, underground parking garages, gyms, greenhouses, and livestock farms.

Basic Information

Fan Type	AC Wall Mounted Axial Flow Fan Φ710/Φ800/Φ900mm (28/32/36 Inch)
Blade/Net mesh Material	Carbon Steel
Rotor Material	Cast Aluminium
Motor	AC 100% Copper Coil External Rotor Motor
Bearing	Ball Bearing
Protection Class	IP54
Insulation Class	F
Operating Temperature	-30℃ To +60℃

Technical Parameters

Type	Diameter of blade(mm)	Voltage (V)	Input power (W)	Speed (Rpm)	Max Airflow (CMH)	Airflow Curves
YWF6D710	φ710	380--Δ	1150	915	16080	①
YWF6D710	φ710	380--Y	850	680	13200	②
YWF6D800	φ800	380--Δ	1790	890	20035	①
YWF6D800	φ800	380--Y	1230	680	16080	②
YWF6D900	φ900	380--Δ	2000	915	27000	①
YWF6D900	φ900	380--Y	1300	750	21500	②

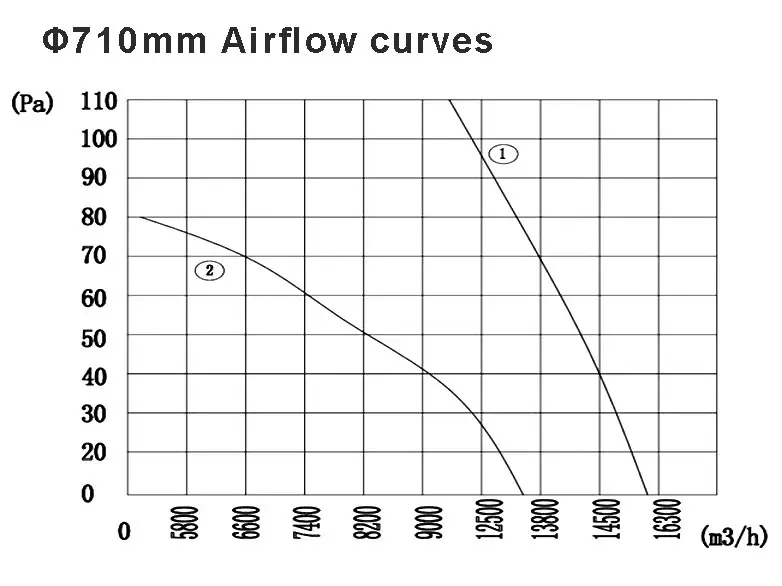

Airflow Curves

Packaging&Shipping：

Our products are usually packed in cardboard boxes with PE bags inside. We will pay attention to prevent collision, and the shipping mark can be made according to customer's requirements.

 Payment terms ,Delivery and Service：

Payment: All payments can be negotiated, usually by T/T or L/C at sight.

Delivery time: After receiving your payment, we will arrange production. We will ship the goods to your port of delivery as soon as possible.

Service: One year warranty, online technical service.

FAQ:

Q1:If there is no product size that meets the requirements, can it be customized?

A:If we can produce the required products, we can produce the required products according to the drawings and requirements provided by customers.

Q2:How long does it take to produce?

A:There is a stock can be sent Immediately. If there is no stock, one month at the latest.

Q3:How long does it take to ship?

A:It will take about 5-7 days to arrive by express and air. It may take up to a month to ship. It takes different time for different geographical locations.

Q4:Can you provide samples?

A:Yes. We can provide samples, but because most of the samples are sent by express, the cost may be very high.

 After-sale Service:

Guide installation

Guidance on online service delivery

Advance service, whole process service

Communicate operation with customer's technicians
