Product Application

Forward curved centrifugal fans without shell, often recognized by their characteristic multi-vane impeller, represent a highly efficient solution for applications demanding significant airflow within minimal space constraints.

Crafted from durable zinc-plated steel, these fans excel at generating high volumetric flow rates at relatively low static pressures, offering OEM designers a compact, cost-effective, and flexible cooling component. they are the indispensable choice for thermal management in telecommunications infrastructure, UPS systems, industrial drying equipment, and various commercial appliances, ensuring reliability and performance where effective ventilation is paramount.

Multi-Blade Type Forward Curved Centrifugal Fan Widely used for Electrical cooling cabinet, ventilation and dust removal of pipelines, air filter system, chemical heat dissipation, etc.

Basic Information

Fan Type	AC Multi-blade Forward Curved Centrifugal Fan Φ133-Φ200mm
Blade/Net mesh Material	Galvanized Iron
Rotor Material	Cast Aluminium
Motor	AC 100% Copper Coil External Rotor Motor
Bearing	Ball Bearing
Protection Class	IP54
Insulation Class	F
Operating Temperature	-30℃ To +60℃

Technical Parameters

Type	Diameter of Air Inlet(mm)	Voltage (V)	Input power (W)	Speed (Rpm)	Max Airflow (CMH)	Airflow Curves
YWFF-2E133-1	φ133	230	90	2680	185	①
YWFF-2E133-2	φ133	230	95	2520	200	②
YWFF-4E140	φ140	230	85	1350	270	①
YWFF-2E140	φ140	230	110	2620	470	②
YWFF-2E150	φ150	230	90	1350	290	①
YWFF-4E150	φ150	230	120	2620	570	②
YWFF-2E160-1	φ160	230	103	2600	400	①
YWFF-2E160-2	φ160	230	210	2620	600	②
YWFF-4E180	φ180	230	180	1400	980	①
YWFF-4D180	φ180	380	160	1400	1050	②
YWFF-4E200	φ200	230	190	1380	1350	①
YWFF-4D200	φ200	380	190	1400	1380	②

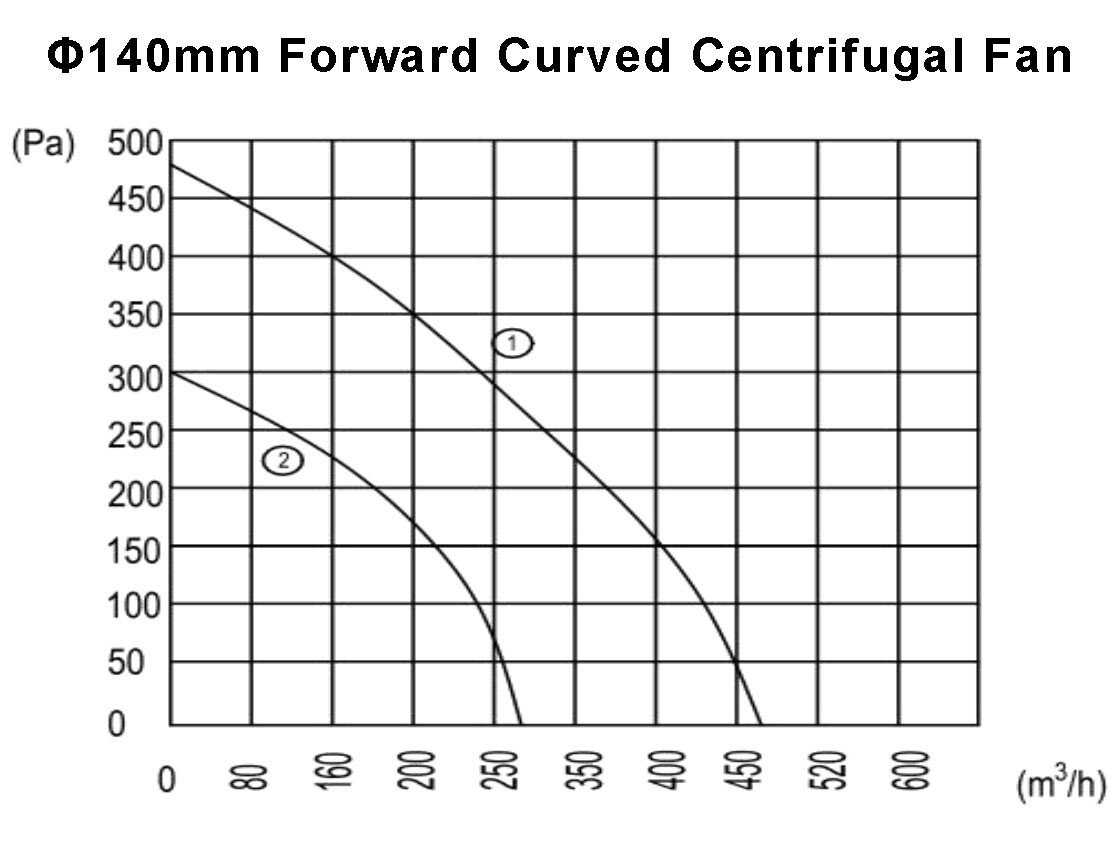

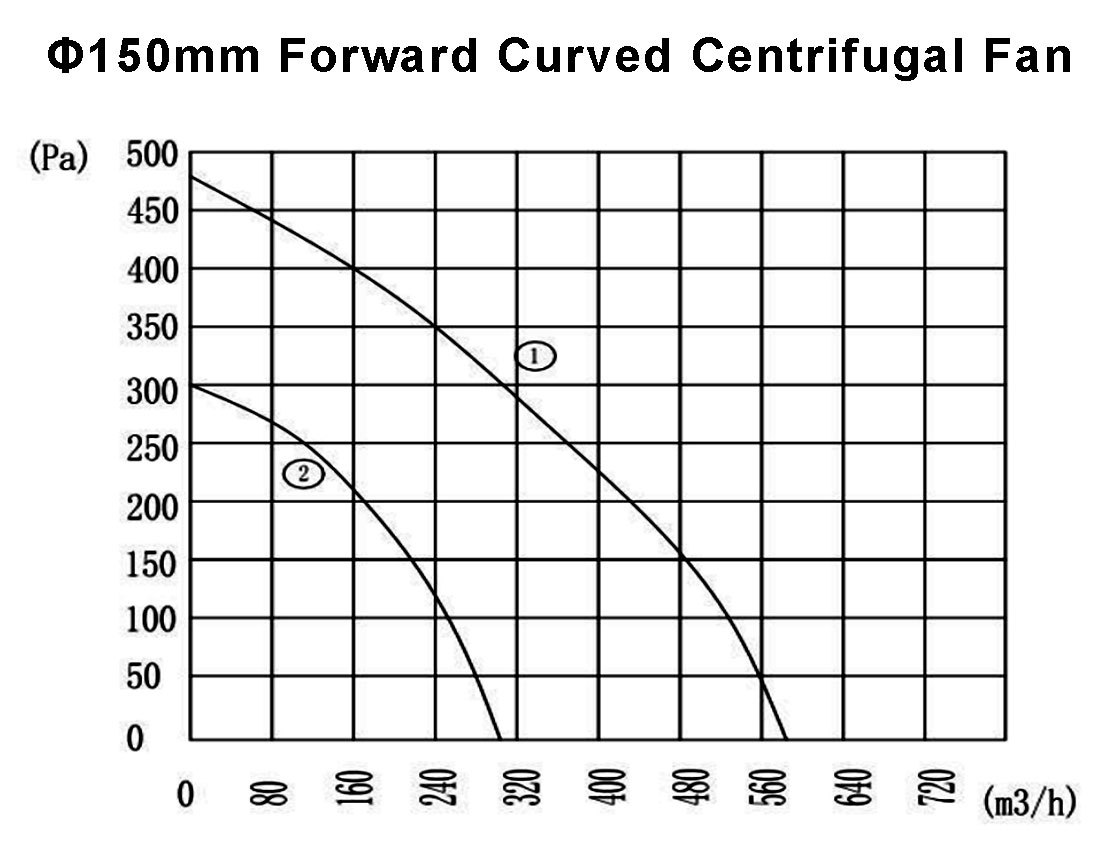

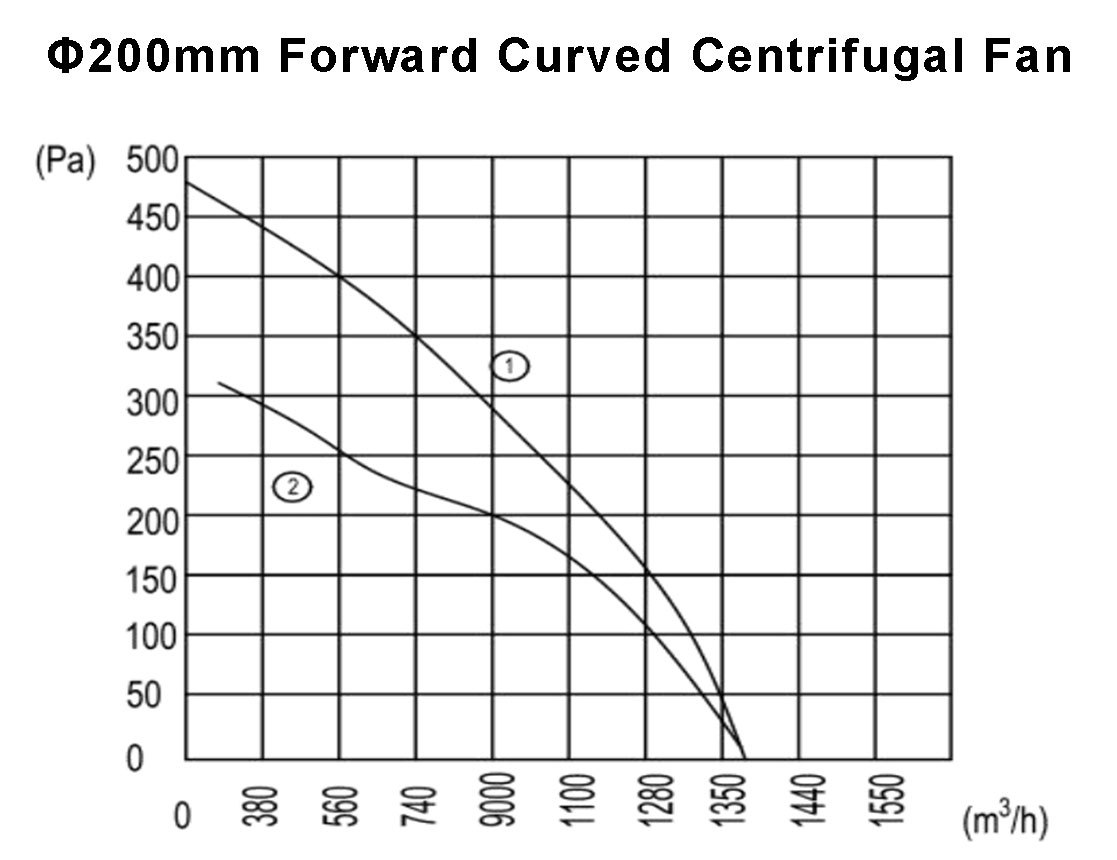

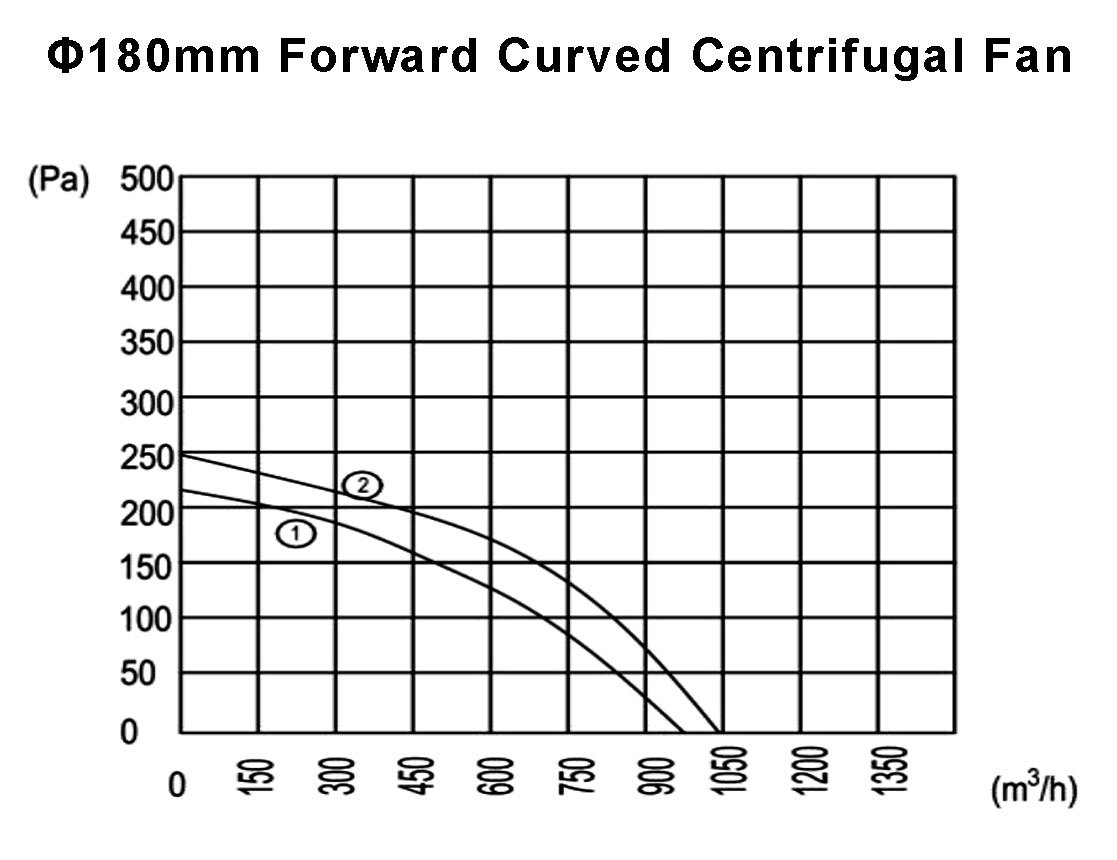

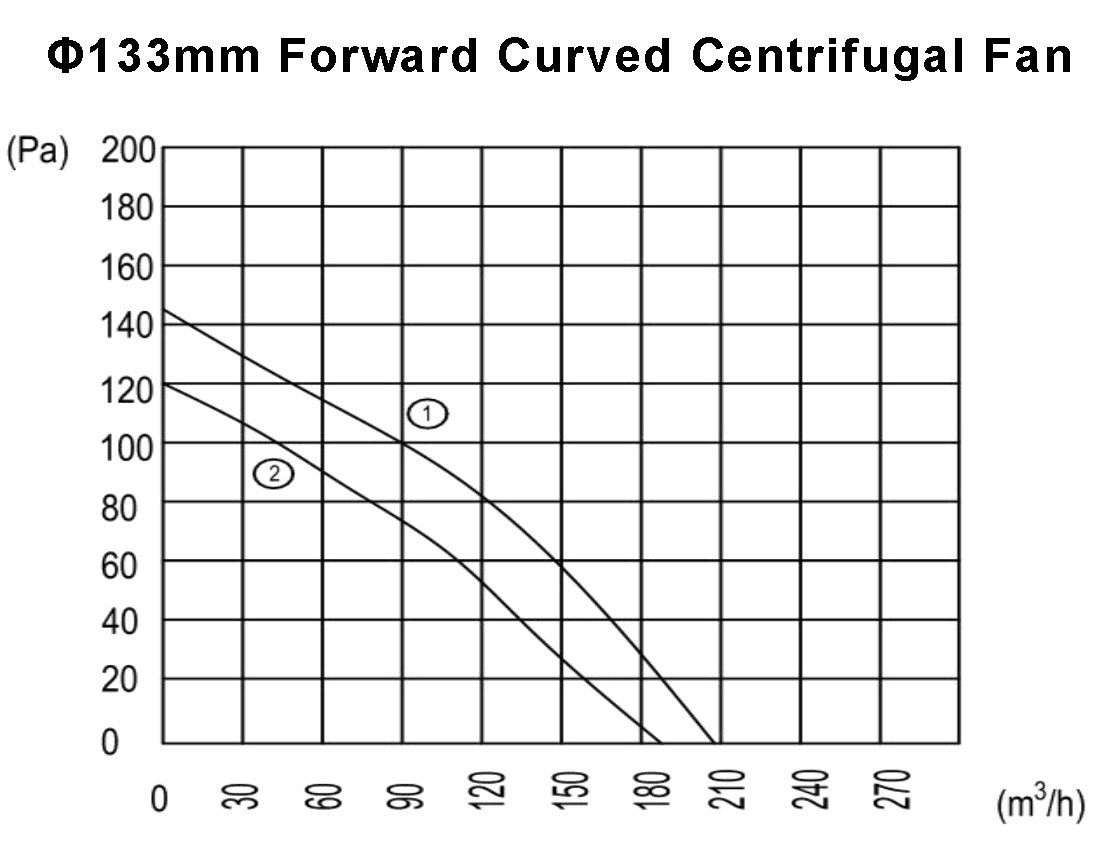

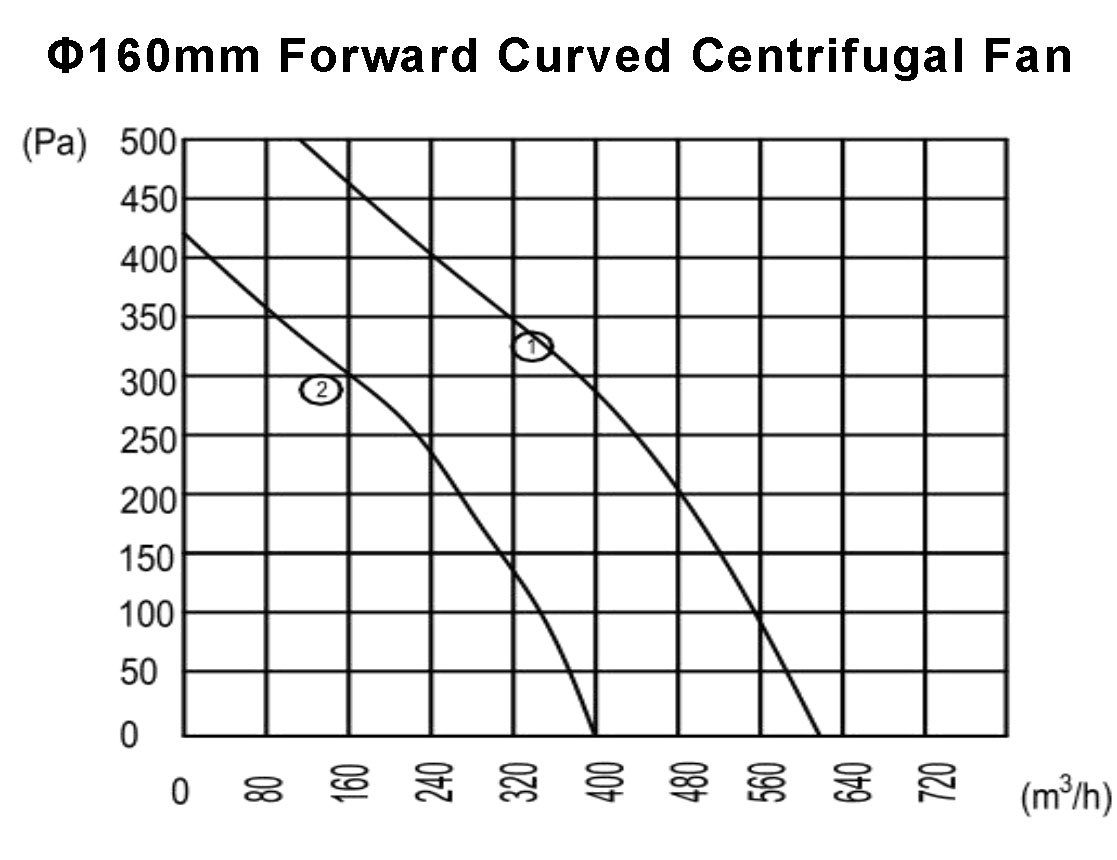

Airflow Curves

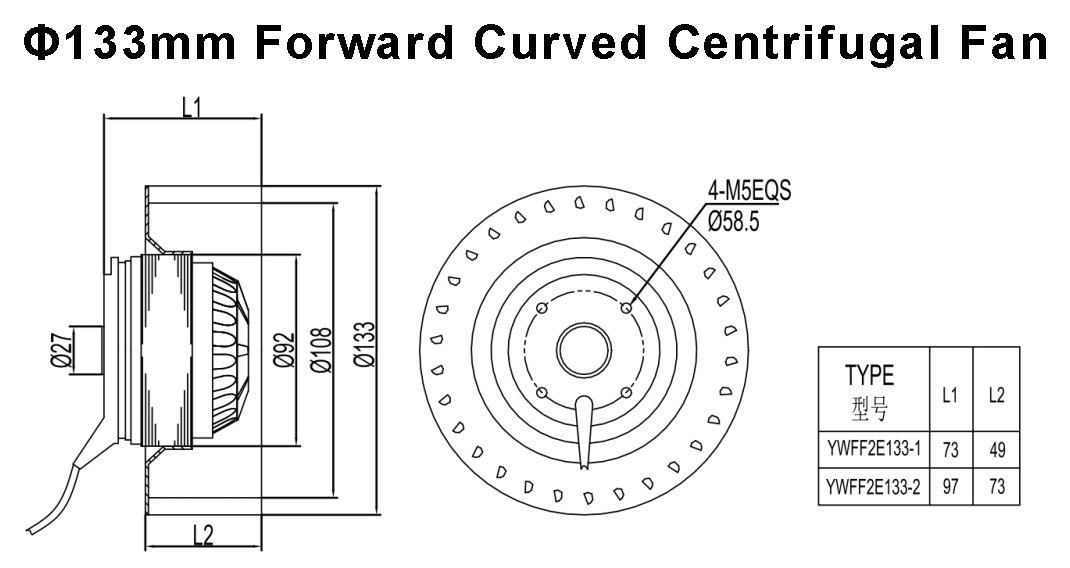

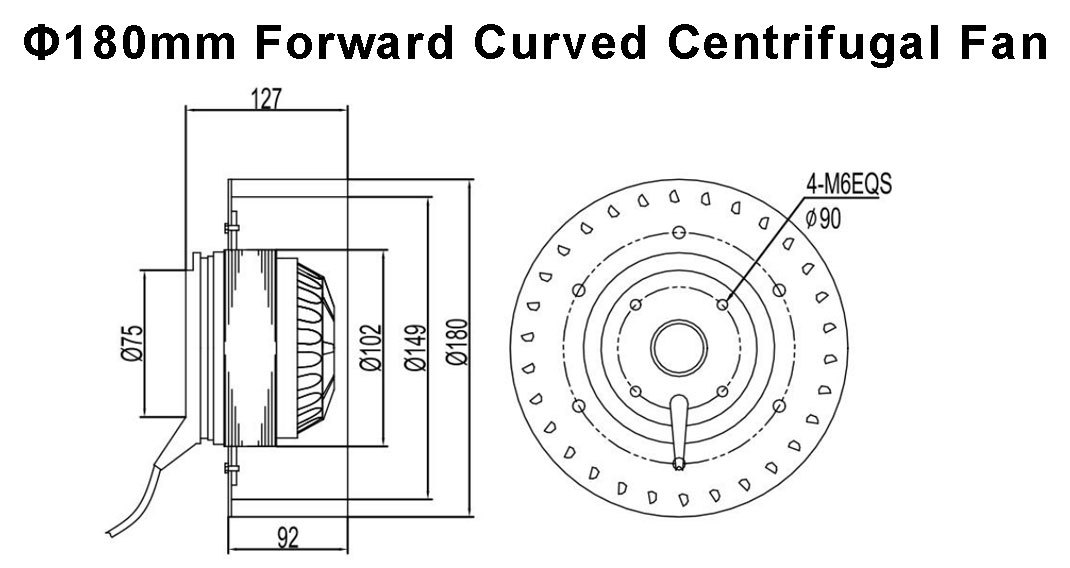

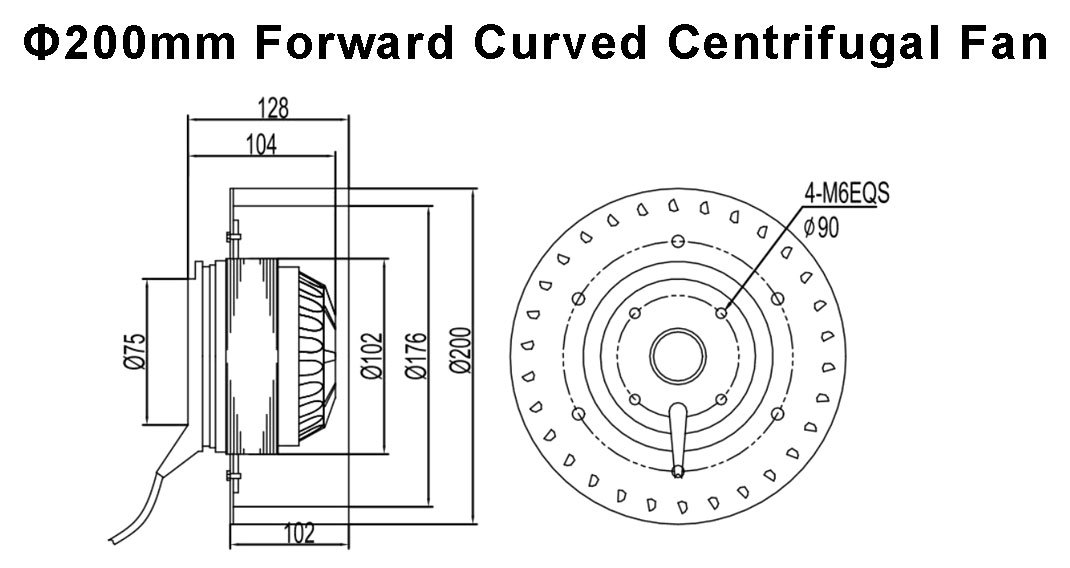

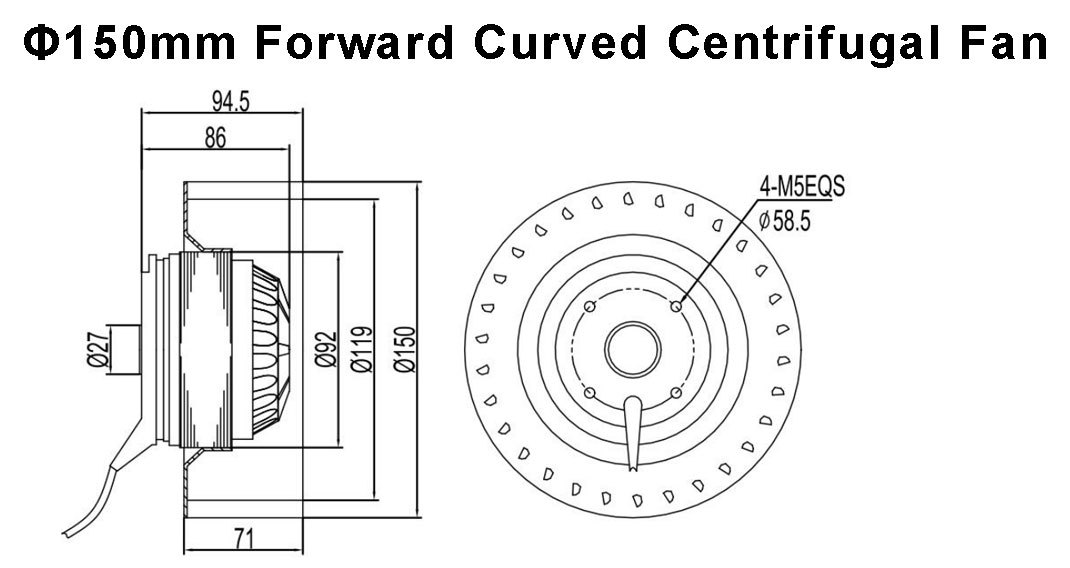

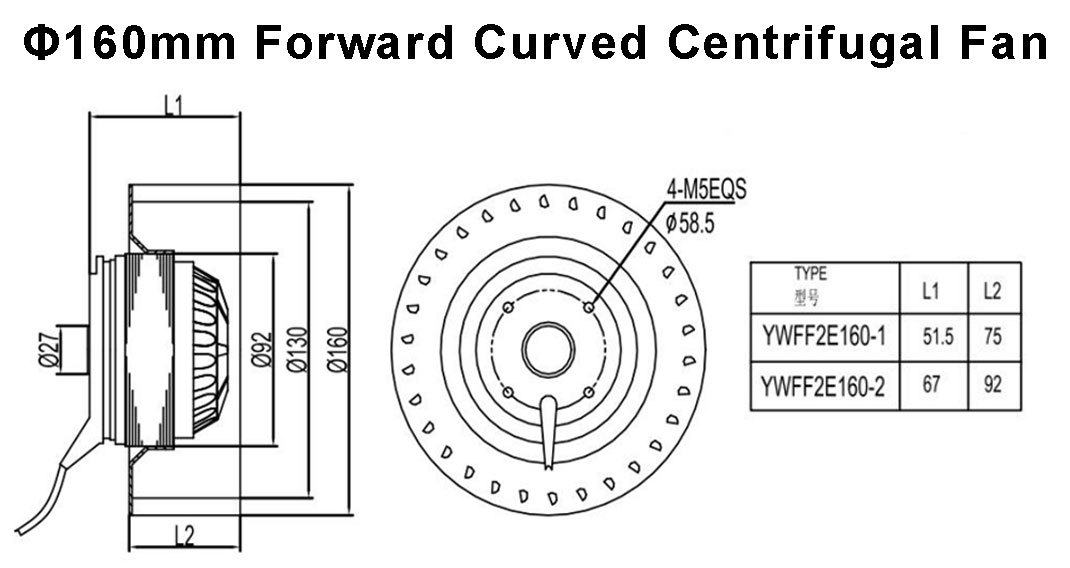

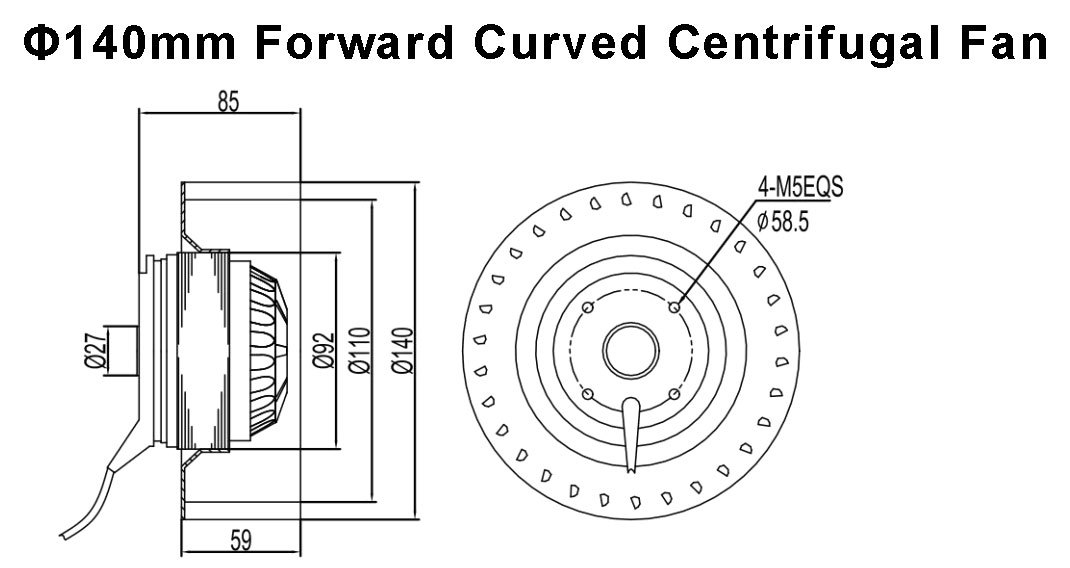

Fan Dimension

Packaging&Shipping：

Our products are usually packed in cardboard boxes with PE bags inside. We will pay attention to prevent collision, and the shipping mark can be made according to customer's requirements.

 Payment terms ,Delivery and Service：

Payment: All payments can be negotiated, usually by T/T or L/C at sight.

Delivery time: After receiving your payment, we will arrange production. We will ship the goods to your port of delivery as soon as possible.

Service: One year warranty, online technical service.
