Choosing an industrial electronic enclosure fan starts with the heat that must be removed, not the fan’s free-air airflow rating. A fan that appears large enough on a datasheet may deliver much less air once it operates against filters, louvers, guards, and enclosure resistance. The selection is suitable only when the fan can maintain the required internal temperature under the highest expected ambient condition.

Start with heat load and allowable temperature rise

Add the heat released by every component inside the enclosure. Power supplies, drives, transformers, PLCs, contactors, relays, network equipment, and displays all contribute to the total heat load. For many electrical components, the electrical power they consume is eventually released as heat, although the equipment manufacturer’s data should be used where available.

Next, define the maximum acceptable internal air temperature. The allowable temperature rise is:

Allowable temperature rise = maximum internal temperature − maximum ambient temperature

For example, an enclosure installed in a hot plant room has much less cooling margin than one installed in a controlled indoor area. If the ambient temperature rises while the heat load remains constant, the required airflow increases because the air has less temperature difference available to carry heat away.

The basic relationship is:

Required airflow = heat load ÷ (air density × specific heat capacity × allowable temperature rise)

In practice, technical evaluators often use a manufacturer’s thermal calculation tool or engineering chart. The important point is to enter the actual heat load and the real allowable temperature rise rather than selecting a fan from enclosure volume alone. Enclosure size affects air circulation and internal hot spots, but volume by itself does not determine the cooling requirement.

Ambient temperature changes the selection

A fan does not make the enclosure cooler than the air entering it. If the surrounding air is already close to the maximum temperature allowed for the electronics, ventilation may provide little usable margin. In that situation, a larger fan may not solve the problem. A heat exchanger, air conditioner, or redesign of the heat-producing components may be more appropriate.

Temperature also affects the fan system itself. Motor insulation, bearings, electronics, lubricants, and plastic materials may have operating limits. EC and DC fans with integrated electronics can offer efficient speed control, but their controller and sensor requirements must be checked at the intended ambient temperature. The selected fan should have an operating range that covers the highest ambient condition with reasonable margin.

Altitude can also matter because air density decreases at higher elevations. The same volumetric airflow carries less heat when the air is less dense. Outdoor installations may additionally face solar heating, dust, moisture, and rapid temperature changes. These conditions should be included in the thermal assessment rather than treated as installation details after the fan has been chosen.

Use the operating airflow, not the headline airflow

Fan datasheets commonly show a maximum airflow measured with no system resistance. An industrial electronic enclosure fan rarely operates under that condition. Filters, inlet grilles, outlet grilles, acoustic materials, finger guards, and narrow internal passages all create pressure loss.

Compare the enclosure system resistance with the fan’s pressure-airflow curve. The required operating point is where the fan curve intersects the resistance curve. A fan with a higher free-air rating may perform worse than a smaller fan designed to maintain useful airflow at the required static pressure.

Filters deserve particular attention. A clean filter may impose modest resistance, while a loaded filter can reduce airflow substantially. If the enclosure depends on filtered ventilation, specify a maintenance interval, filter condition indicator, or airflow monitoring method. Otherwise, the original thermal calculation may no longer describe the installed system after several months of operation.

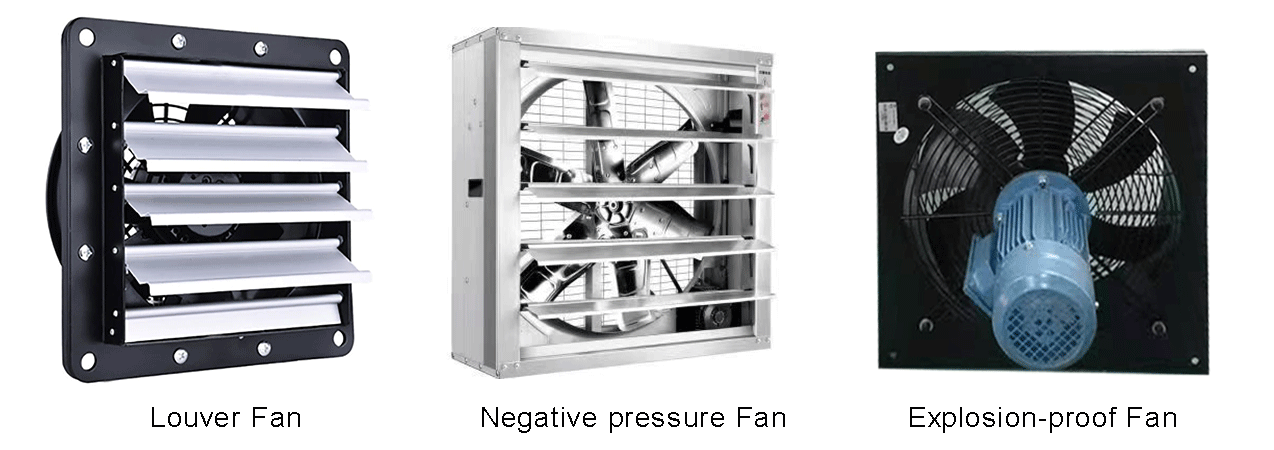

Match the fan type to the enclosure layout

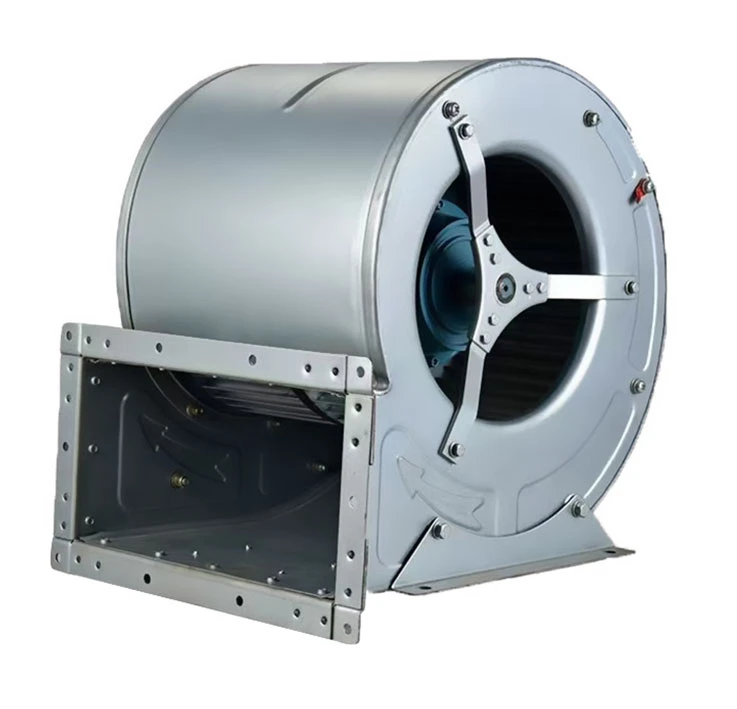

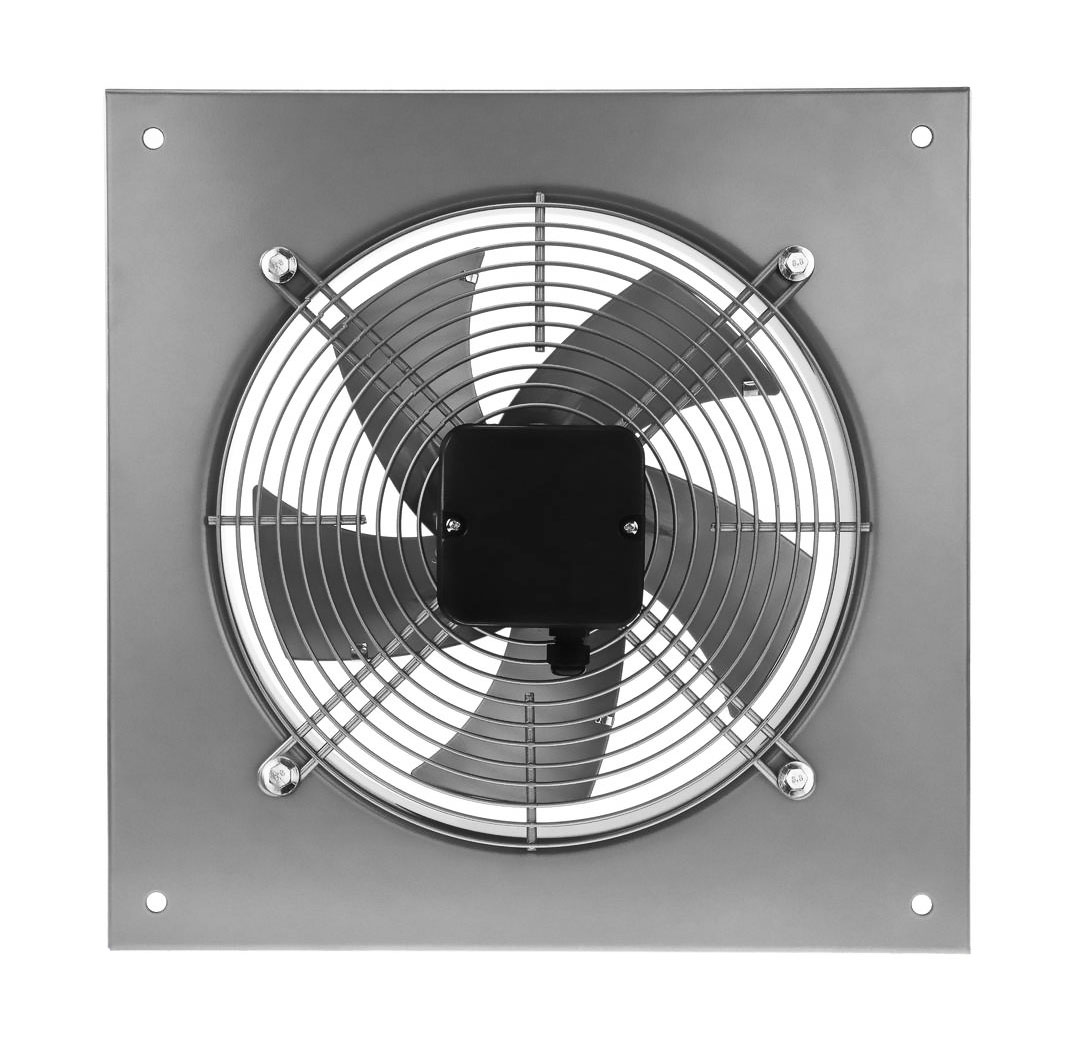

Axial fans are often suitable for through-flow ventilation where air can enter and leave with limited resistance. They are compact and can provide high airflow at relatively low pressure. Centrifugal fans are useful when the system includes ducts, restrictive filters, or a more complicated airflow path because they can generate higher pressure.

EC fans are attractive where variable-speed control, energy efficiency, or automatic thermal regulation is important. DC fans may suit compact control cabinets and low-voltage systems, provided the voltage range, starting behavior, protection, and control signal are compatible with the equipment. The fan type should follow the resistance and control requirements of the enclosure, rather than being selected only by motor technology.

Airflow direction is equally important. Place the inlet where it can draw the cleanest available air and position the outlet to prevent short-circuiting, where warm exhaust air is immediately pulled back into the enclosure. The arrangement should also avoid directing hot air across temperature-sensitive components or allowing a single internal corner to become a stagnant zone.

A practical evaluation sequence

• Calculate the total heat released by the installed components.
• Set the maximum ambient temperature and maximum permissible internal temperature.
• Calculate the required heat-removal airflow using the allowable temperature rise.
• Estimate pressure loss from filters, grilles, guards, ducts, and enclosure openings.
• Read the fan’s airflow at that pressure point instead of using its free-air figure.
• Check operating temperature, voltage, noise, service life, ingress protection, and alarm or speed-control functions.
• Review the result under dirty-filter, high-altitude, solar-heated, and component-upgrade conditions where relevant.

For a technical evaluator, the strongest selection package includes the heat-load calculation, assumed ambient conditions, fan curve, system resistance estimate, and maintenance plan. That documentation makes it easier to compare an axial, centrifugal, EC, or DC industrial electronic enclosure fan on actual operating performance and service conditions. If the required airflow is close to the fan’s maximum capability, the design has little tolerance for filter loading or future equipment changes and should be reassessed before approval.
