Φ200/Φ250/Φ300mm (8/10/12Inch) AC Guard Mounted Axial Fans Fans

Inquiry

Product Application

This Type Guard Mounted Axial Fans, with wide blades and high airflows, Often used as a refrigeration accessory, it is installed on refrigeration equipment. It has a compact structure and is easy to install. It can be simply fixed to the equipment with screws. Usually, there are two options for wind direction available: "Blowing Type"(B) and "Suction Type"(S)."Suction Type" (S) is generally used for indoor evaporator equipment, and the "Blowing Type"(B) often be used for outdoor condenser euipment.

Besides above,It can quickly help cool down the machine, effectively preventing overheating of welding equipment, motors, CNC machines and electrical panels, etc., thereby ensuring the smooth and safe operation of the machine.

Basic Information

Fan Type	AC Guard Mounted Axial Flow Fan 200/250/300 Model (8/10/12 inch)
Blade/Net mesh Material	Carbon Steel
Rotor Material	Cast Aluminium
Motor	AC 100% Copper Coil External Rotor Motor
Bearing	Ball Bearing
Protection Class	IP54
Insulation Class	F
Operating Temperature	-30℃ To +60℃

Technical Parameters

Type	Diameter of blade(mm)	Voltage (V)	Input power (W)	Speed (Rpm)	Max Airflow (CMH)	Airflow Curves
YWF2E200	φ200	220	63	2550	750	①
YWF2D200	φ200	380	69	2600	790	②
YWF4E200	φ200	220	40	1400	556	③
YWF2E250	φ250	220	104	2550	960	①
YWF2D250	φ250	380	104	2550	965	②
YWF4E250	φ250	220	50	1400	715	③
YWF4D250	φ250	380	55	1400	740	④
YWF2E300	φ300	220	136	2550	2020	①
YWF2D300	φ300	380	136	2550	2060	②
YWF4E300	φ300	220	85	1380	1170	③
YWF4D300	φ300	380	90	1380	1230	④

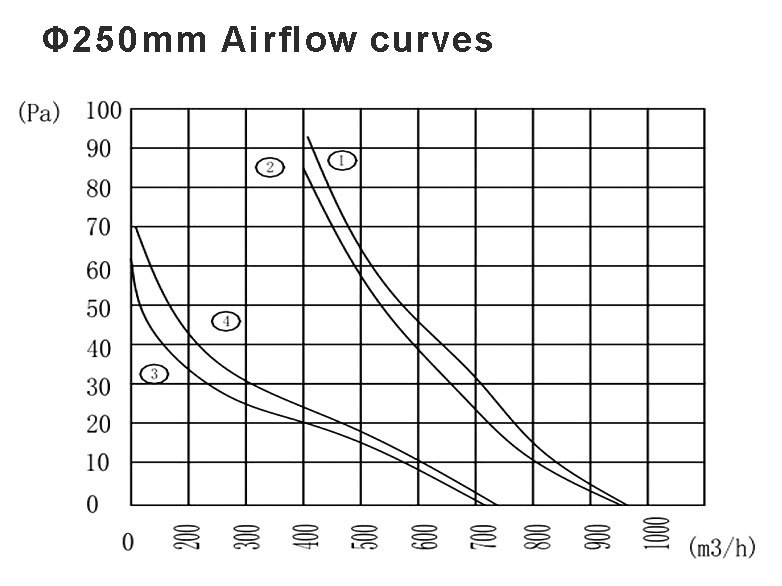

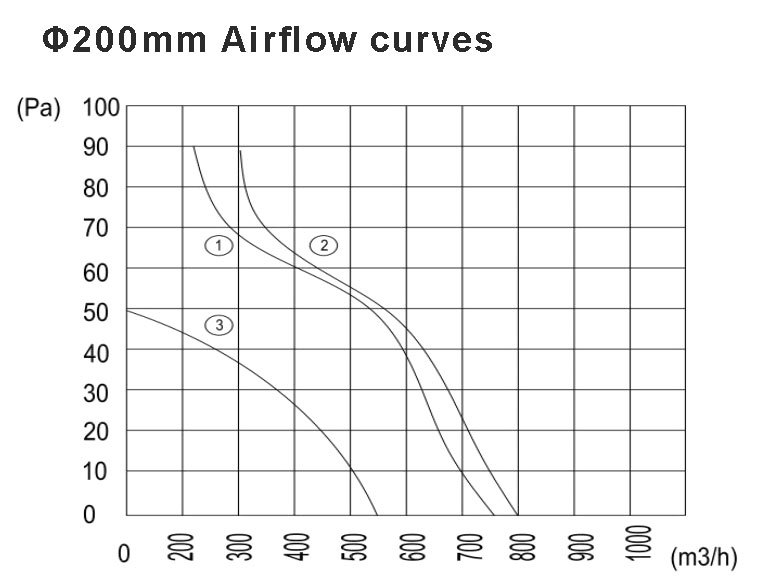

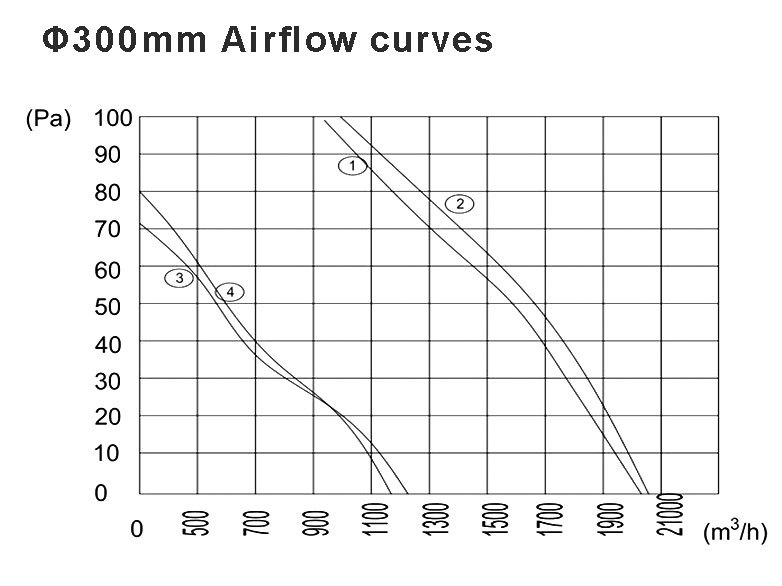

Airflow Curves

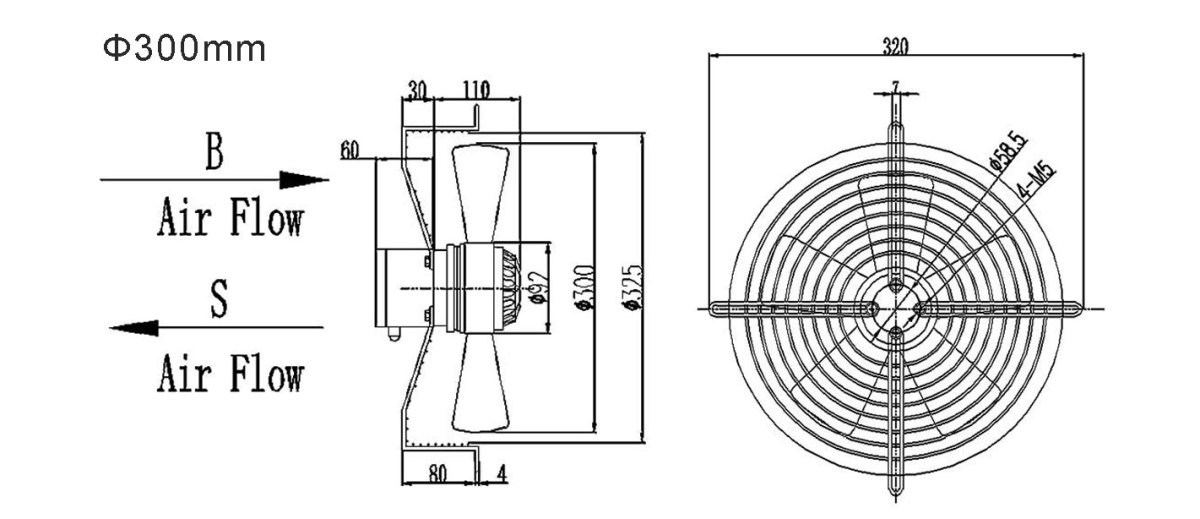

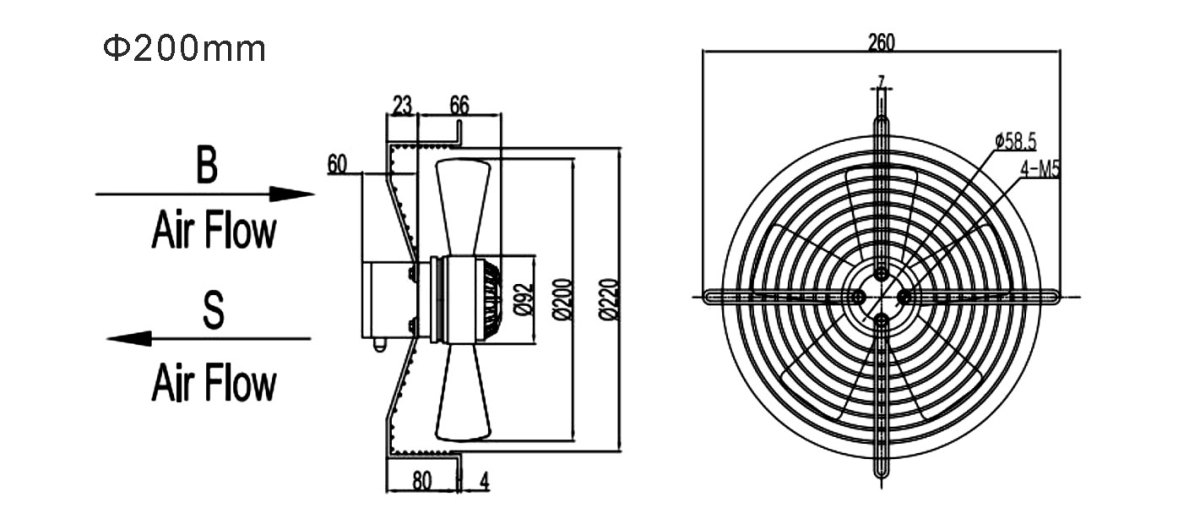

Fan Dimension

Packaging&Shipping：

Our products are usually packed in cardboard boxes with PE bags inside. We will pay attention to prevent collision, and the shipping mark can be made according to customer's requirements.

 Payment terms ,Delivery and Service：

Payment: All payments can be negotiated, usually by T/T or L/C at sight.

Delivery time: After receiving your payment, we will arrange production. We will ship the goods to your port of delivery as soon as possible.

Service: One year warranty, online technical service.

FAQ:

Q1:If there is no product size that meets the requirements, can it be customized?

A:If we can produce the required products, we can produce the required products according to the drawings and requirements provided by customers.

Q2:How long does it take to produce?

A:There is a stock can be sent Immediately. If there is no stock, one month at the latest.

Q3:How long does it take to ship?

A:It will take about 5-7 days to arrive by express and air. It may take up to a month to ship. It takes different time for different geographical locations.

Q4:Can you provide samples?

A:Yes. We can provide samples, but because most of the samples are sent by express, the cost may be very high.
