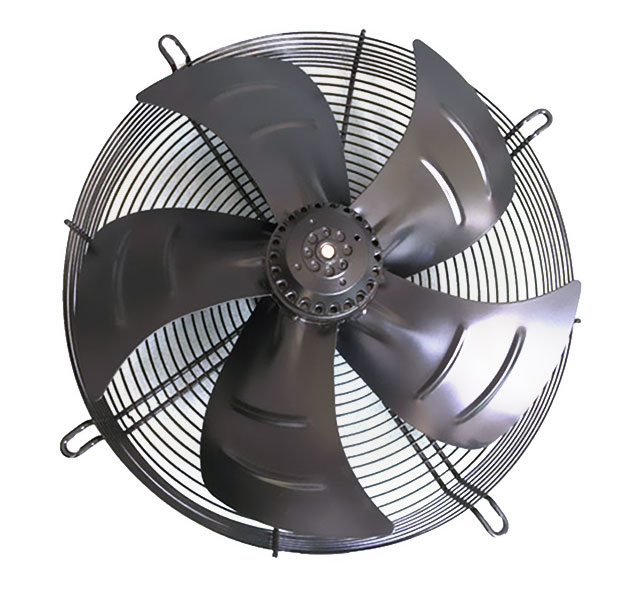

Φ500/Φ550/Φ600/Φ630mm (20/22/24/25 Inch) AC Guard Mounted Axial Fans Fans

Inquiry

Product Application

This Guard Mounted Axial Fans, with wide blades and high airflows, Often used as a refrigeration accessory, it is installed on refrigeration equipment. It has a compact structure and is easy to install. It can be simply fixed to the equipment with screws. Usually, there are two options for wind direction available: "Blowing Type"(B) and "Suction Type"(S)."Suction Type" (S) is generally used for indoor evaporator equipment, and the "Blowing Type"(B) often be used for outdoor condenser euipment.

Besides above,It can quickly help cool down the machine, effectively preventing overheating of welding equipment, motors, CNC machines and electrical panels, etc., thereby ensuring the smooth and safe operation of the machine.

Basic Information

Fan Type	AC Guard Mounted Axial Flow Fan Φ500/Φ550/Φ600/Φ630 Model (20/22/24/25 Inch)
Blade/Net mesh Material	Carbon Steel
Rotor Material	Cast Aluminium
Motor	AC 100% Copper Coil External Rotor Motor
Bearing	Ball Bearing
Protection Class	IP54
Insulation Class	F
Operating Temperature	-30℃ To +60℃

Technical Parameters

Type	Diameter of blade(mm)	Voltage (V)	Input power (W)	Speed (Rpm)	Max Airflow (CMH)	Airflow Curves
YWF4E500	φ500	220	420	1350	6420	①
YWF4D500	φ500	380	420	1370	6560	②
YWF6E500	φ500	220	220	920	4850	③
YWF6D500	φ500	380	220	920	4850	④
YWF4E550	φ550	220	530	1340	8020	①
YWF4D550	φ550	380	550	1350	8740	②
YWF6E550	φ550	220	320	910	6320	③
YWF6D550	φ550	380	320	910	6430	④
YWF4E600	φ600	220	780	1350	10020	①
YWF4D600	φ600	380	800	1380	10840	②
YWF6E600	φ600	220	500	910	8040	③
YWF6D600	φ600	380	500	920	8130	④
YWF4E630	φ630	220	800	1340	10850	①
YWF4D630	φ630	380	850	1360	12260	②
YWF6E630	φ630	220	520	900	8900	③
YWF6D630	φ630	380	500	900	8900	④

Airflow Curves

Packaging&Shipping：

Our products are usually packed in cardboard boxes with PE bags inside. We will pay attention to prevent collision, and the shipping mark can be made according to customer's requirements.

 Payment terms ,Delivery and Service：

Payment: All payments can be negotiated, usually by T/T or L/C at sight.

Delivery time: After receiving your payment, we will arrange production. We will ship the goods to your port of delivery as soon as possible.

Service: One year warranty, online technical service.

FAQ:

Q1:If there is no product size that meets the requirements, can it be customized?

A:If we can produce the required products, we can produce the required products according to the drawings and requirements provided by customers.

Q2:How long does it take to produce?

A:There is a stock can be sent Immediately. If there is no stock, one month at the latest.

Q3:How long does it take to ship?

A:It will take about 5-7 days to arrive by express and air. It may take up to a month to ship. It takes different time for different geographical locations.

Q4:Can you provide samples?

A:Yes. We can provide samples, but because most of the samples are sent by express, the cost may be very high.

 After-sale Service:

Guide installation

Guidance on online service delivery

Advance service, whole process service

Communicate operation with customer's technicians
