Product Application

The mixed-flow duct fan adopts an integrated cylindrical design, allowing seamless embedding and installation in various ventilation duct systems. As a highly efficient and versatile ventilation device, it innovatively combines the high-airflow characteristics of axial fans with the high-pressure advantages of centrifugal fans, making it an ideal solution for ventilation systems in both industrial and commercial settings.

The fan housing is made of corrosion-resistant ABS engineering plastic, offering excellent structural strength and environmental adaptability. Through unique airflow passage design and impeller structure optimization, it achieves a perfect balance between ventilation efficiency and static pressure performance while maintaining a compact size, significantly saving installation space.

Typical application scenarios include:

Environmental control in plant factories and greenhouses
Fresh air supply and exhaust systems in commercial buildings
Kitchen exhaust and air circulation systems
Ventilation and air exchange in underground parking garages and industrial plants

With features such as low-noise operation and high energy efficiency, this product provides a reliable solution for various ventilation needs.

Basic Information

Fan Type	AC Mixed Flow Plastic Inline Duct Fan 4" 5" 6" 8" 10" 12"
Fan Blade/Shell Material	ABS Plastic
Motor	AC 100% Copper Coil External Rotor Motor
Bearing	Ball Bearing
Operating Temperature	-30℃ To +60℃
Range of Size	From 100mm to 315mm
Speed	Double speed/ Single speed
Application	Mainly used in growthroom, kitchen echaust, duct system.

Technical Parameters

Type No.	Speed	Diameter of Air Intake (inch)	Voltage	Frequency	Airflow	Speed	Power	Pressure	Noise
Type No.	Speed	(mm)	(VAC)	(HZ)	(M3/h)	(Rpm)	(W)	(Pa)	(dB)
YWF-G-HF100	1- Speed	4”/100	220	50	310	2600	40	180	34
YWF-G-HF100	2-Speed	4”/100	220	50	300/330	2300/2600	38/42	150/180	33/36
YWF-G-HF125	1- Speed	5”/125	220	50	310	2600	40	180	34
YWF-G-HF125	2-Speed	5”/125	220	50	300/330	2300/2600	38/42	150/180	33/36
YWF-G-HF150	1- Speed	6”/150	220	50	540	2600	75	300	38
YWF-G-HF150	2-Speed	6”/150	220	50	520/650	2070/2600	58/75	300	42/48
YWF-G-HF200	1- Speed	8”/200	220	50	900	2600	150	380	43
YWF-G-HF200	2-Speed	8”/200	220	50	830/1050	1770/2450	95/120	300/360	52/58
YWF-G-HF250	1- Speed	10”/250	220	50	1450	2450	250	488	50
YWF-G-HF250	2-Speed	10”/250	220	50	1064/1450	1850/2450	165/225	371/488	52/60
YWF-G-HF315	1- Speed	12”/315	220	50	2900	2500	320	630	65
YWF-G-HF315	2-Speed	12”/315	220	50	1750/2206	1650/2350	275/390	435/693	61/69

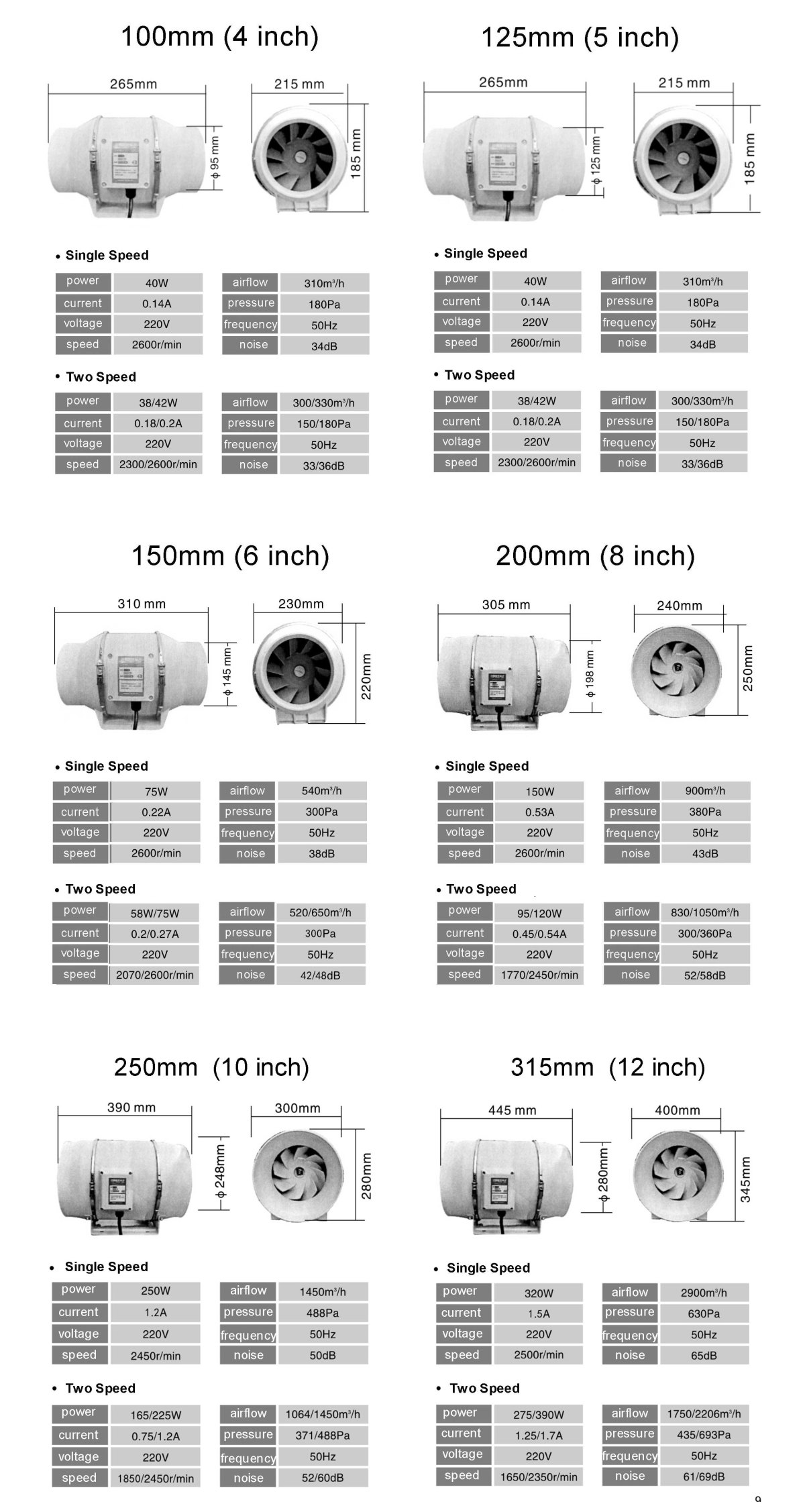

Fan Dimension

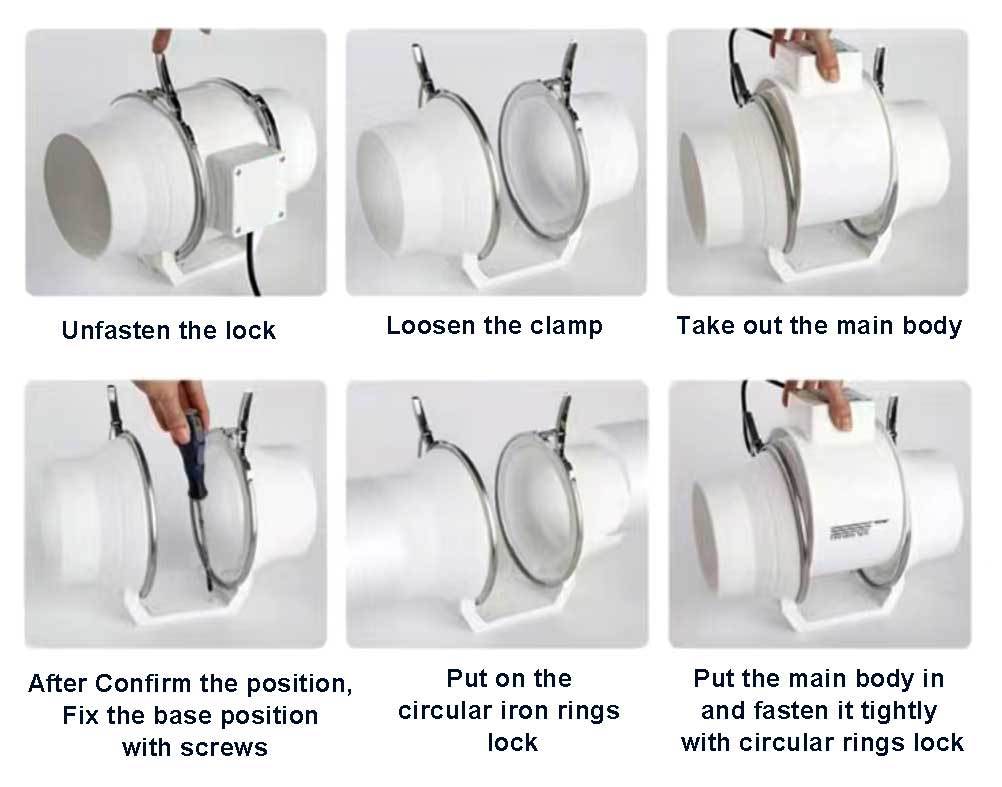

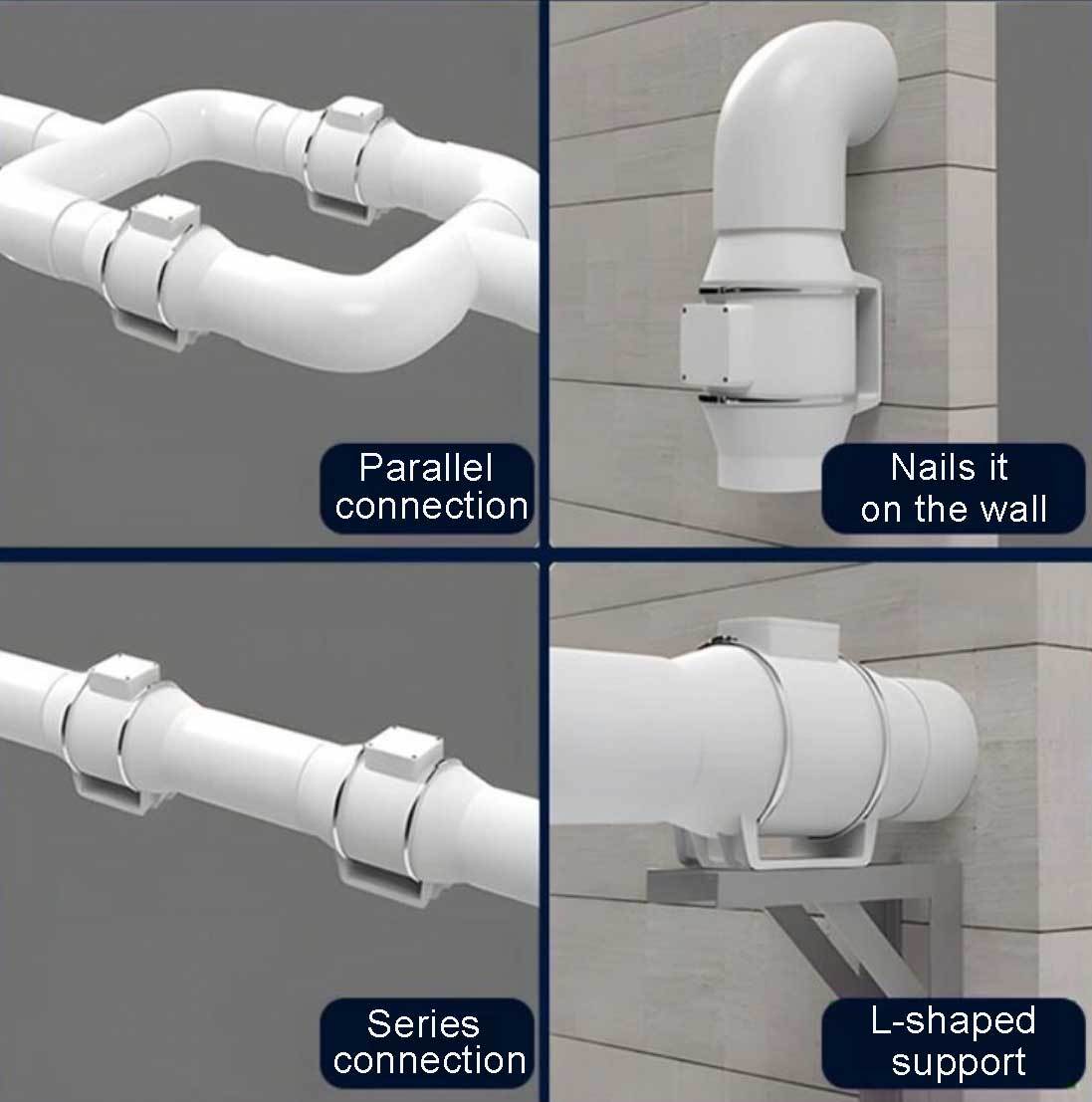

Installation Method
