Product Application

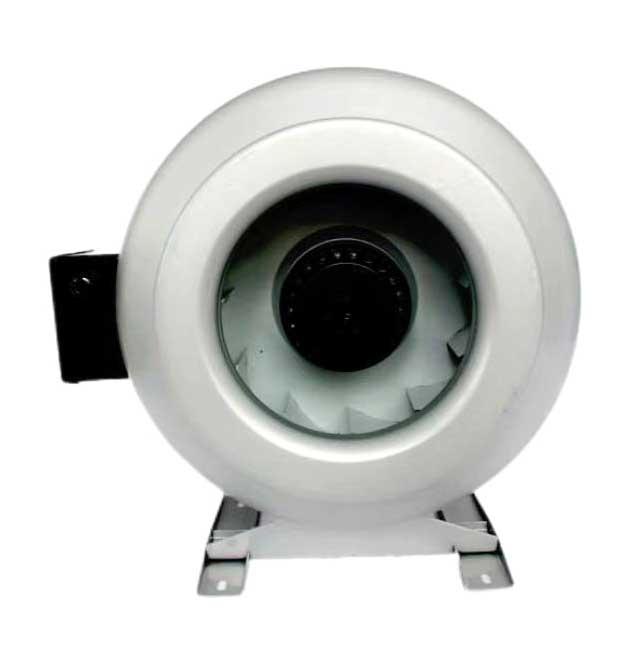

The curcial inline duct fan using Galvanized Iron panel material as the outer sheel, don't easy to deform, light volume, easy to install. The internal use of backward curved impeller fan, can increase the air volume, improve efficiency, Since its super suction, it widely used in kitchen smoke exhaust, bathroom ventilation, commercial ventilation, pipeline dust removal, Engine Room Ventilation, marine ventilation, greenhouse planting workshop ventilation and so on.

Basic Information

Fan Type	AC Metal Circular Inline Duct Fan 4" 6" 8" 10" 12"
Fan Blade/Shell Material	Galvanized Iron
Rotor Material	Cast Aluminium
Motor	AC 100% Copper Coil External Rotor Motor
Bearing	Ball Bearing
Protection Class	IP54
Insulation Class	F
Operating Temperature	-30℃ To +60℃

Technical Parameters

Type No.	Diameter of Air Intake (inch/mm)	Voltage	Frequency	Airflow	Speed	Power	Noise
Type No.	Diameter of Air Intake (inch/mm)	(VAC)	(HZ)	(M3/h)	(Rpm)	(W)	(dB)
YWF-G-2E100	4"/100	120	60	290	2700	72	58
YWF-G-2E100	4"/100	220	50	282	2480	61	56
YWF-G-2E125	5"/125	120	60	305	2630	77	59
YWF-G-2E125	5"/125	220	50	293	2480	71	56
YWF-G-2E150	6"/150	120	60	600	2520	127	63
YWF-G-2E150	6"/150	220	50	550	2480	105	59
YWF-G-2E160	6.4"/160	120	60	620	2560	120	66
YWF-G-2E160	6.4"/160	220	50	600	2530	111	65
YWF-G-2E200	8"/200	120	60	920	2560	187	67
YWF-G-2E200	8"/200	220	50	900	2510	150	64
YWF-G-2E250	10"/250	120	60	1000	2510	190	68
YWF-G-2E250	10"/250	220	50	950	2490	159	66
YWF-G-2E315	12"/315	120	60	1650	2500	212	70
YWF-G-2E315	12"/315	220	50	1600	2450	168	68

Fan Dimension
