Product Application

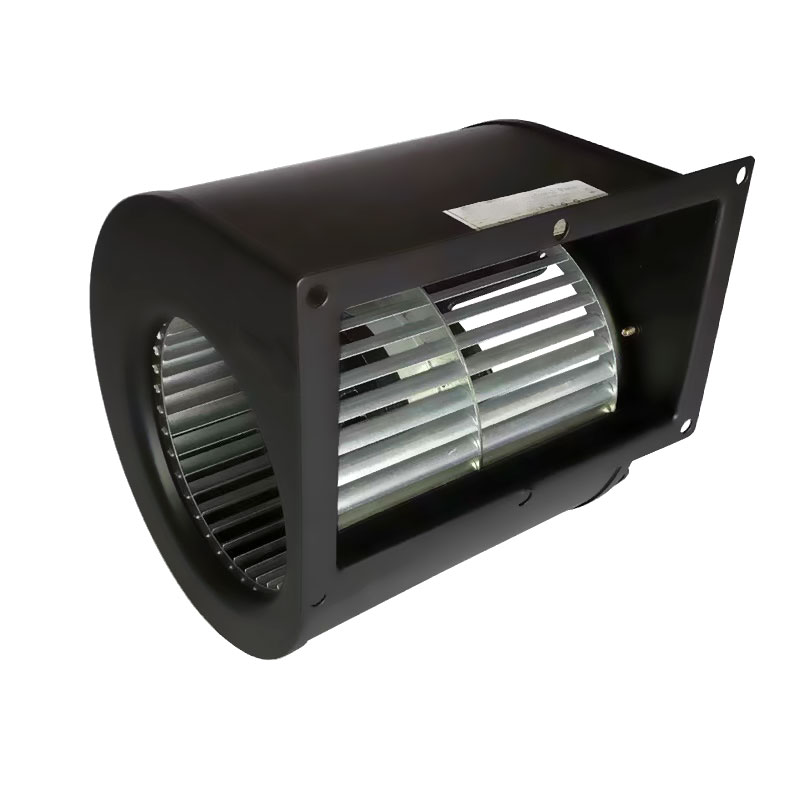

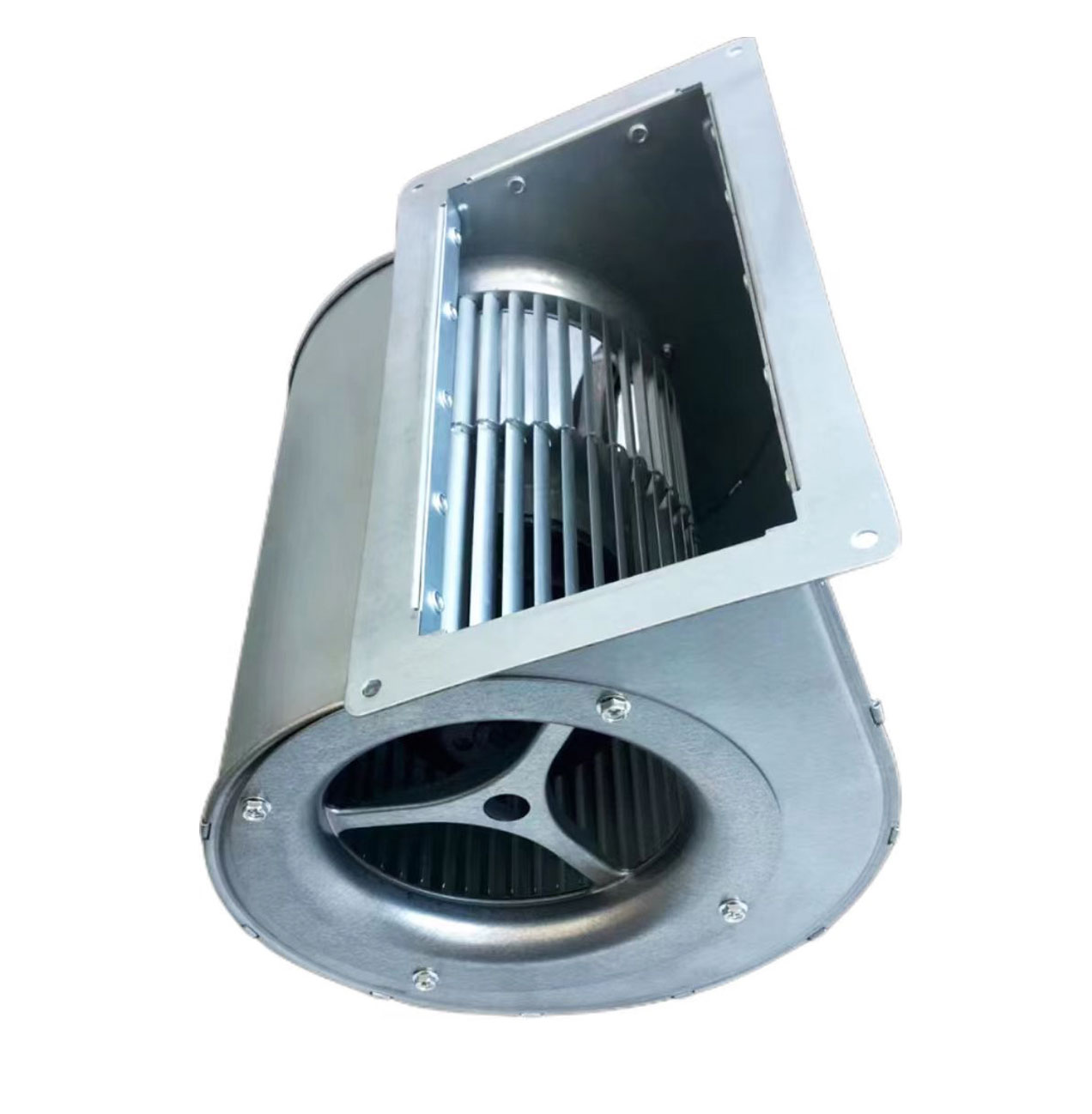

The double suction centrifugal fan is a double suction structure added on the basis of the traditional centrifugal fan. The advantage of this structure is that it can enter the air from both directions at the same time, greatly improving the gas transmission capacity and efficiency of the fan. Double inlet centrifugal fan has wide application range, strong conveying capacity and high efficiency.

Basic Information

Fan Type	AC Single Inlet Centrifugal Blower Fan Φ133/Φ146mm
Blade/Net mesh Material	Galvanized Iron
Rotor Material	Cast Aluminium
Motor	AC 100% Copper Coil External Rotor Motor
Bearing	Ball Bearing
Protection Class	IP54
Insulation Class	F
Operating Temperature	-30℃ To +60℃

Technical Parameters

Type	Voltage (V)	Frequency(HZ)	Input power (W)	Speed (Rpm)	Max Airflow (CMH)
YWFF-2E133B-1	220	50	100	1390	540
YWFF-2E2133B-2	220	60	156	1600	640
YWFF-4E146B-1	220	50	117	1320	870
YWFF-4E146B-2	220	60	173	1450	930

Company Profile

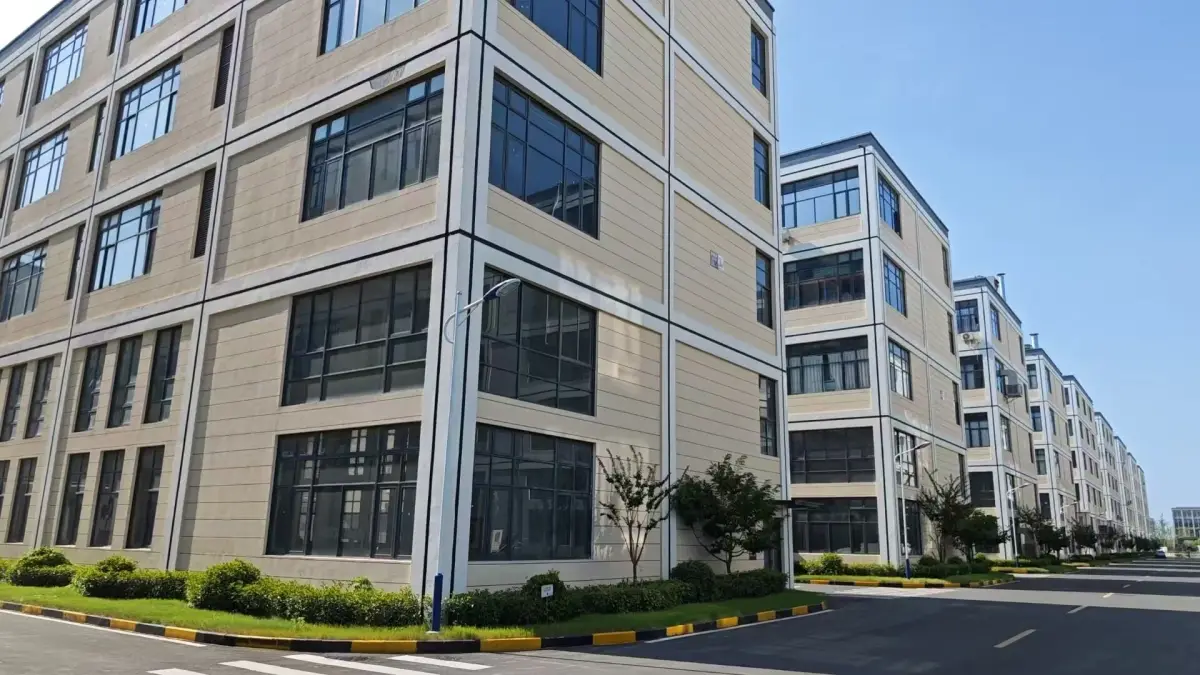

SHANGHAI WEIMA ELECTRIC EQUIPMENT CO., LTD was established in 2009 and is located in the internationally renowned and conveniently located, beautiful city of Shanghai.The company has strong technical force and advanced production equipment, has perfect quality assurance system and first-class testing equipment, is a professional production of various types of micro motor, (fan), outer rotor axial flow fan, pipeline axial flow fan, centrifugal fan, a variety of blower, a new air change machine ventilation, ventilation equipment. Enterprises through the ISO9001 quality management system certification, ISO14001 environmental management system certification, products through the CCC, CE certification, the outer rotor fan made in the national industrial products production license.

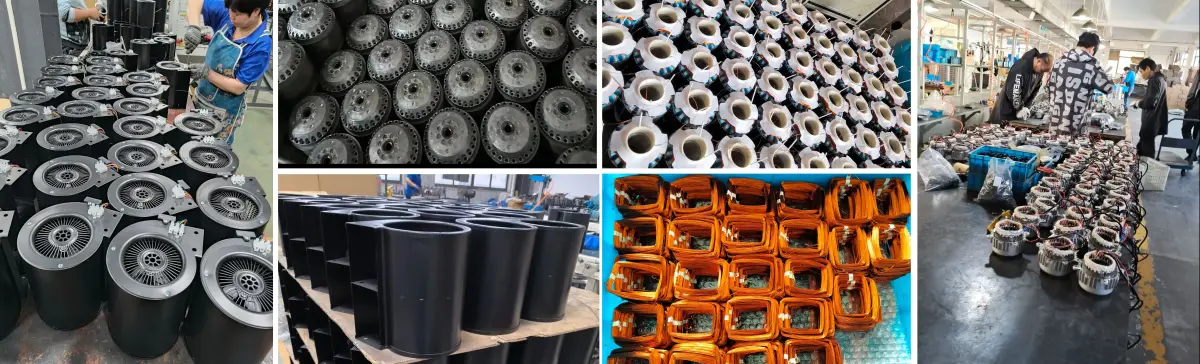

In the fierce market competition, enterprises rely on strict scientific management, reliable quality of products around the world to win the trust of our customers.We have first-class CNC machining equipment, with an annual production capacity of millions of units, and we have 15 years of experience in the research and development and production of fans and motors.During the processing of our products, strict quality inspections are carried out before leaving the factory. Welcome to call us for any custom fan or motor solution.

MOQ: 100 pcs Contact: Ameiy Email: wormal03@weimash.com Wechat(whatsapp): 86-18001760128

Packaging&Shipping：

Our products are usually packed in cardboard boxes with PE bags inside. We will pay attention to prevent collision, and the shipping mark can be made according to customer's requirements.

 Payment terms ,Delivery and Service：

Payment: All payments can be negotiated, usually by T/T or L/C at sight.

Delivery time: After receiving your payment, we will arrange production. We will ship the goods to your port of delivery as soon as possible.

Service: One year warranty, online technical service.

FAQ:

Q1:If there is no product size that meets the requirements, can it be customized?

A:If we can produce the required products, we can produce the required products according to the drawings and requirements provided by customers.

Q2:How long does it take to produce?

A:There is a stock can be sent Immediately. If there is no stock, one month at the latest.

Q3:How long does it take to ship?

A:It will take about 5-7 days to arrive by express and air. It may take up to a month to ship. It takes different time for different geographical locations.

Q4:Can you provide samples?

A:Yes. We can provide samples, but because most of the samples are sent by express, the cost may be very high.

 After-sale Service:

Guide installation

Guidance on online service delivery

Advance service, whole process service

Communicate operation with customer's technicians
