High-Suction Industrial Wall-Mounted Axial Fan: Why It's Becoming a Factory Standard

Wall-mounted axial fans are widely used in industrial, agricultural, and commercial ventilation applications. With their high airflow capacity and space-saving design, they have become a go-to choice for project suppliers worldwide.

I. Common Application Scenarios

l Machining workshops, welding shops, painting booths

l Electrical rooms, server rooms, control cabinets

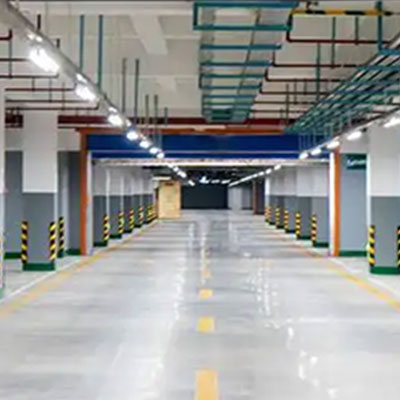

l Warehouses, cold storage, logistics centers

l Food processing plants, chemical plants, farms

l Fruit and vegetable storage, solar greenhouses

II. Four Key Advantages：

1. High Airflow, Low Power Consumption

Optimized cold-rolled steel blades paired with a pure copper core motor deliver exceptional CFM while significantly reducing energy consumption. Stable performance even during extended operation.

2. Ultra-Quiet Operation

Dynamic balancing and vibration-dampening base reduce measured noise to as low as 70 dB — equivalent to a normal conversation. Workers can communicate clearly without shouting.

3. Easy Installation

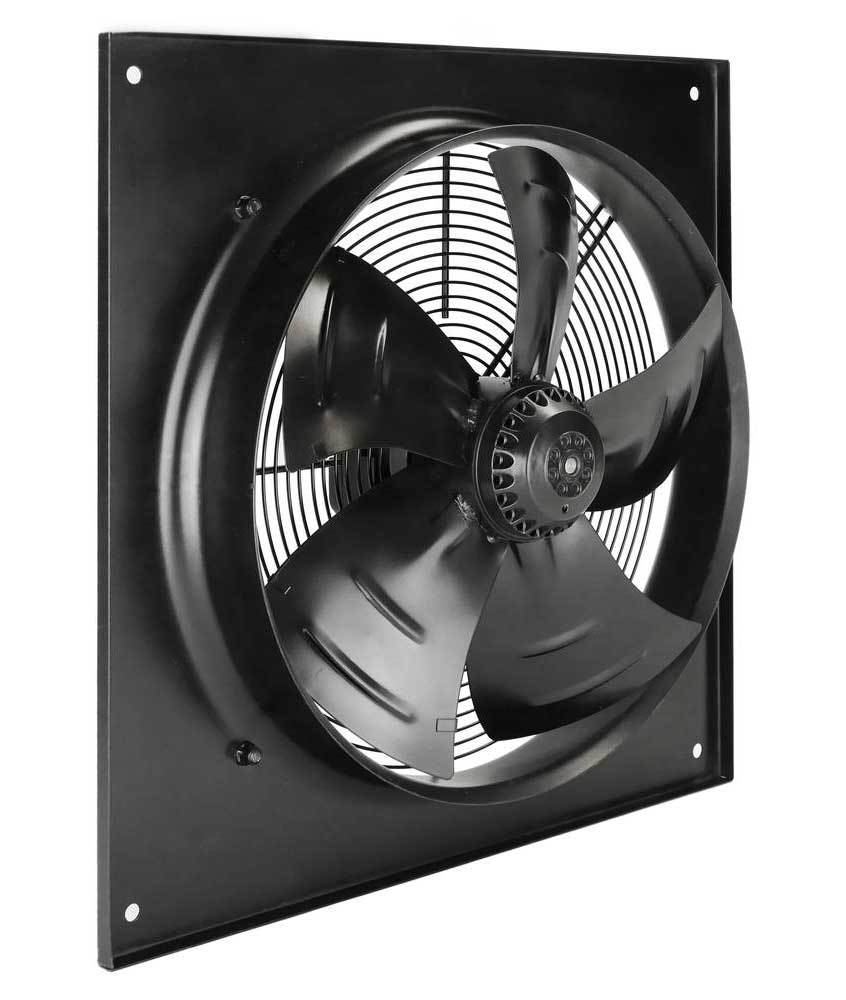

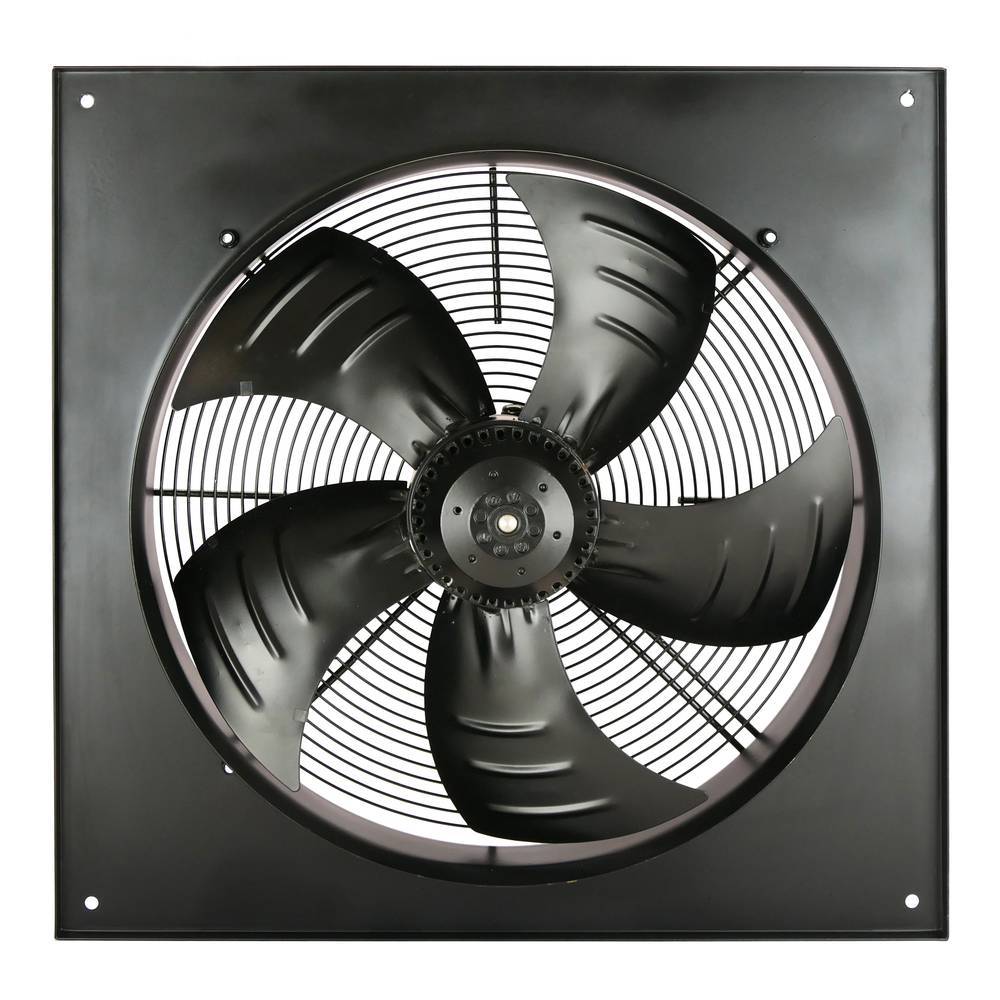

Classic square panel design with pre-drilled mounting holes at all four corners. Whether wall-mounted, ceiling-mounted, or embedded into a wall, installation is quick and simple. Reduces labor costs significantly.

4. Sturdy and durable

Thickened cold-rolled steel housing with high-temperature baked paint or galvanized anti-corrosion coating. IP54 protection rating means it stands up to oil, dust, and moisture in demanding industrial environments.

III. Specifications & Selection Guide

IV. How to Select the Right Model

You should learn these issues before choose the fans: (1)How big is your workspace? (2)How many air changes per hour do you need?(3) What voltage is available?

Step 1: Calculate Required Airflow (CFM)

Simplified formula:

Required CFM ≈ Room Volume (ft³) × Air Changes per Hour ÷ 1.7

Metric version:

Required m³/h ≈ Room Volume (m³) × Air Changes per Hour

General workshops: 6–15 air changes per hour

High heat or odor areas: 20–30 air changes per hour

Example:

A 100m² workshop with 4m ceiling height = 400m³ volume.

At 10 air changes per hour:

400 × 10 = 4,000 m³/h

Select a model with rated airflow ≥ this value. We recommend leaving 10–20% margin.

Step 2: Confirm Mounting Size & Voltage

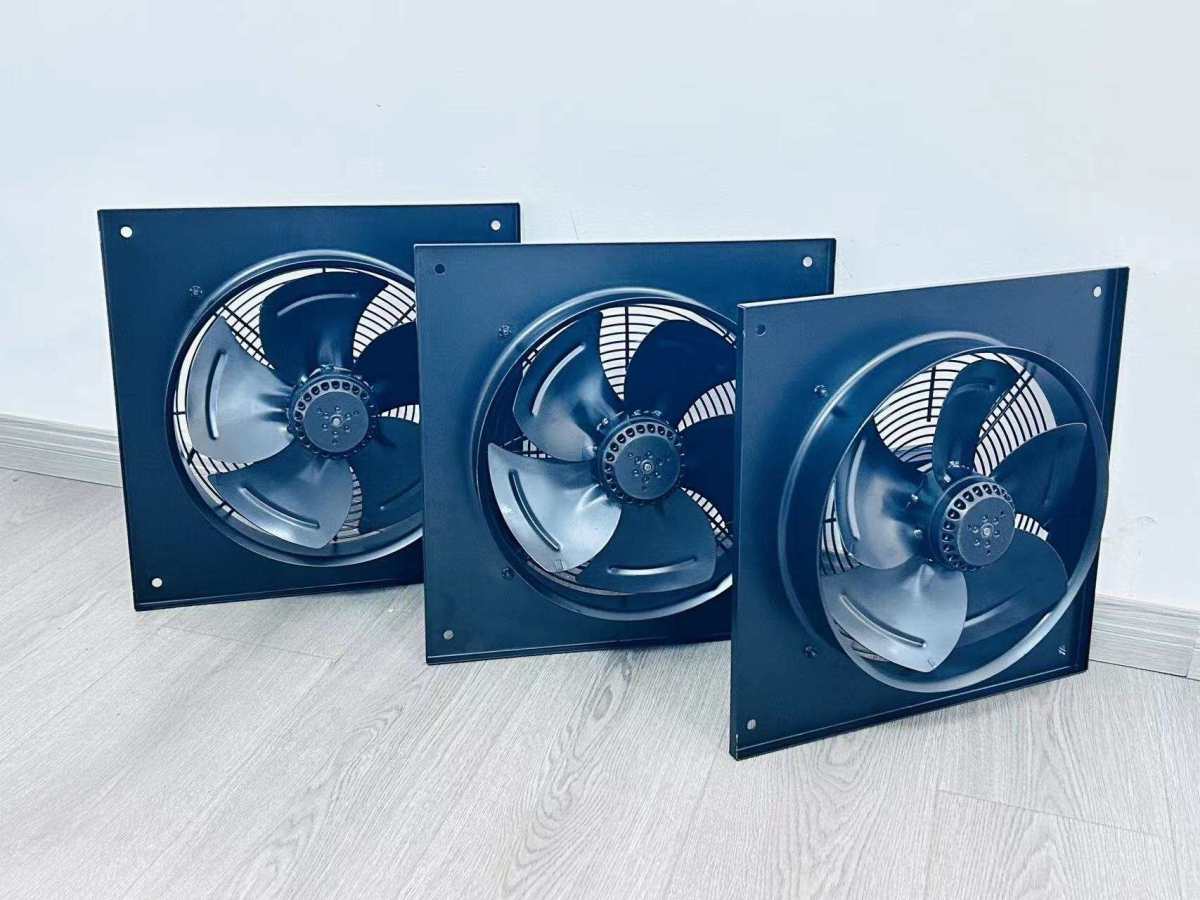

Panel/frame size: Commonly 300mm, 400mm, 500mm, 600mm

— match your wall opening

Voltage: Choose 380V or 220V, 50/60Hz based on your local supply

Special requirements: EC motor available with 0–10V or PWM speed control

Step 3: Consider Operating Conditions

Wrong selection means wasted performance. We offer free sizing assistance — just send us your dimensions.

V. Installation Tips

u Install above or downwind of heat sources — hot air rises, improving extraction efficiency

u Keep inlet and outlet areas clear — minimum 1.5x impeller diameter clearance

u For exhaust applications, add a fresh air intake on the opposite side for negative pressure flow

u Confirm whether the motor side should face indoors or outdoors based on protection needs

u Blade curve direction indicates airflow direction,the airflow generally flows from the convex surface to the concave surface of the fan blade.

u Use provided bolts to secure all four corners to a flat surface

u Add rubber vibration pads to reduce resonance, especially on metal sheet walls

u For outdoor installation, add a weather hood or louver to prevent rain ingress

u Ensure proper grounding (PE)

VI. Summary

Whether you're a factory manager looking to improve working conditions, an engineering contractor sourcing reliable components, or an e-commerce seller expanding your product line, Wormal wall-mounted axial fans are a choice you can count on.
